Ball valve manufacturer

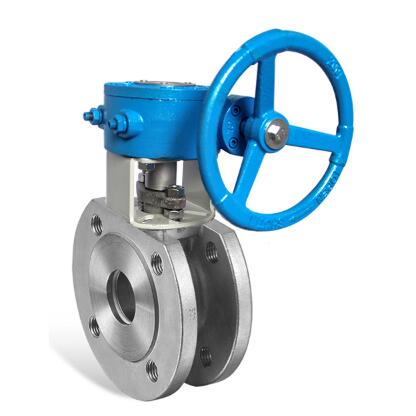

Gear operated wafer type ball valve China

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Wafer type
  • Feature:China wafer type ball valve manufacturer
China wafer type ball valve manufacturer,factory and supplier, Gear operated wafer type ball valve China has the advantages of short structure length, light weight, convenient installation and material saving.Gear operated wafer type ball valve China is suitable for short line pipe and special space installation and use, with compact structure,short length,small volume,Gear operated wafer type ball valve China seat and flange end face distance is close, less material retention, superior sealing performance and other characteristics.

Gear operated wafer type ball valve China choose different material, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, and other media.

Gear operated wafer type ball valve China Performance parameter
Nominal size: DN15~300mm
Nominal pressure: 1.0Mpa-100Mpa,CL150,CL300,CL600
Connection: ultra-thin flange type, sandwiched type
Structural form: straight through
Spool type: O - type spool
Flow characteristics: fast opening characteristics
Spool material: WCB,304, 316, A105, F304, F316, etc
Sealing materials: PTFE, PPL, metal sealing
Body design: straight cast ultra short ball valve
Wafer type short pattern ball valveBody material:WCB,304, 316, A105, F304, F316, etc
Temperature range: PTFE: ≤150°C, PPL: ≤200°C, hard seal: ≤450°C
Applicable temperature: -17°C~450°C
Wafer type short pattern ball valve Type of drive: manual,electric,pneumatic
Applicable medium: Gear operated wafer type ball valve China is used in all kinds of pipeline, used to cut off or connect the medium in the pipeline, choose different materials, can be respectively applicable to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.
