Ball valve manufacturer

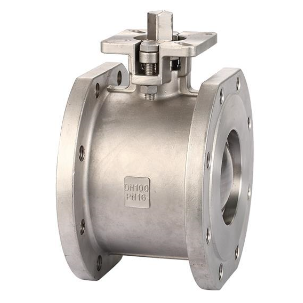

Wafer ball valve with ISO 5211 mounting pad

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:1PC,Short length, wafer type
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,304, 316, A105, F304, F316, etc
  • Connection:Wafer type
  • Feature:ISO 5211 mounting pad
Wafer ball valve with ISO 5211 mounting pad introduction
Wafer ball valve with ISO 5211 mounting pad is ISO 5211 high platform for manual,pneumatic,electric actuator, Wafer ball valve with ISO 5211 mounting pad has the advantages of short structure length, light weight, convenient installation and material saving.Wafer ball valve with ISO 5211 mounting pad suitable for short line pipe and special space installation and use, with compact structure,short length,small volume,Wafer ball valve with ISO 5211 mounting pad seat and flange end face distance is close, less material retention, superior sealing performance and other characteristics.

Wafer ball valve with ISO 5211 mounting pad seat use the elastic sealing structure, the sealing is reliable, opens and closes easily.With fire-resistant structure, in case of fire,Wafer ball valve with ISO 5211 mounting pad can still operate reliably and have good sealing. According to the needs of users, anti-static structure can be set.The switch with hole positioning plate is set, which can be locked according to the need to prevent misoperation.

Wafer ball valve with ISO 5211 mounting pad choose different material, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, and other media.

Wafer ball valve with ISO 5211 mounting pad Performance parameter
Nominal size: DN15~300mm
Nominal pressure: 1.0Mpa-100Mpa,CL150,CL300,CL600
Connection: ultra-thin flange type, sandwiched type
Structural form: straight through
Spool type: O - type spool
Flow characteristics: fast opening characteristics
Spool material: WCB,304, 316, A105, F304, F316, etc
Sealing materials: PTFE, PPL, metal sealing
Body design: straight cast ultra short ball valve
Wafer ball valve Body material:WCB,304, 316, A105, F304, F316, etc
Temperature range: PTFE: ≤150°C, PPL: ≤200°C, hard seal: ≤450°C
Applicable temperature: -17°C~450°C
wafer type ball valveType of drive: manual,electric,pneumatic
Applicable medium: Wafer ball valve with ISO 5211 mounting pad is used in all kinds of pipeline, used to cut off or connect the medium in the pipeline, choose different materials, can be respectively applicable to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
