Ball valve manufacturer

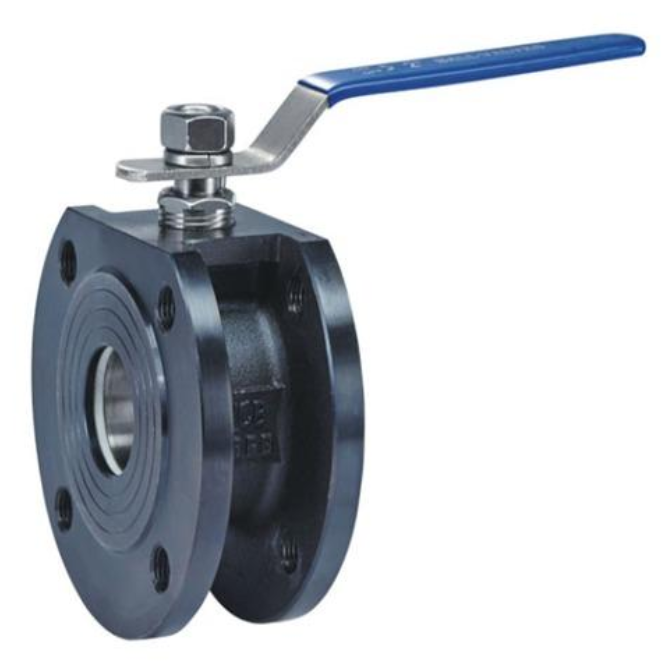

A105 1PC wafer ball valve china

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:1PC,Short length, wafer type
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:A105 or others
  • Connection:Wafer type
  • Feature:Cast steel or forged steel is optional
A105 1PC wafer ball valve china introduction
A105 1PC wafer ball valve china has the advantages of short structure length, light weight, convenient installation and material saving.A105 1PC wafer ball valve china is suitable for short line pipe and special space installation and use, with compact structure,short length,small volume,A105 1PC wafer ball valve chinae seat and flange end face distance is close, less material retention, superior sealing performance and other characteristics.

A105 1PC wafer ball valve china seat use the elastic sealing structure, the sealing is reliable, opens and closes easily.With fire-resistant structure, in case of fire,A105 1PC wafer ball valve china can still operate reliably and have good sealing. According to the needs of users, anti-static structure can be set.The switch with hole positioning plate is set, which can be locked according to the need to prevent misoperation.

A105 1PC wafer ball valve china choose different material, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, and other media.

A105 1PC wafer ball valve china Performance parameter
Nominal size: DN15~300mm
Nominal pressure: 1.0Mpa-100Mpa,CL150,CL300,CL600
Connection: ultra-thin flange type, sandwiched type
Structural form: straight through
Spool type: O - type spool
Flow characteristics: fast opening characteristics
Spool material: WCB,304, 316, A105, F304, F316, etc
Sealing materials: PTFE, PPL, metal sealing
Body design: straight cast ultra short ball valve
Wafer type short pattern ball valveBody material:WCB,304, 316, A105, F304, F316, etc
Temperature range: PTFE: ≤150°C, PPL: ≤200°C, hard seal: ≤450°C
Applicable temperature: -17°C~450°C
A105 1PC wafer ball valve china Type of drive: manual,electric,pneumatic
Applicable medium: A105 1PC wafer ball valve china is used in all kinds of pipeline, used to cut off or connect the medium in the pipeline, choose different materials, can be respectively applicable to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.

A105 1PC wafer ball valve china dimension
SIZE 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6"
d 15 19 23.5 30 36 45 58 67 79 100 125
L 32 38.5 45 55 62 72 95 120 145 200 225
D 95 105 115 135 145 160 180 195 215 245 280
D1 65 75 85 100 110 125 145 160 180 210 240
D2 45 55 65 78 85 100 120 135 155 185 210
H 62 70 79 86 92 102 158 172 187 200 240
E 110 125 135 150 150 180 250 300 350 650 840
b 14 14 16 16 18 20 22 24 24 26 26
z-d1 4-14 4-14 4-14 4-18 4-18 4-18 4-18 8-18 8-18 8-18 8-23
f 2 2 2 3 3 3 3 3 3 3 3
