Ball valve manufacturer

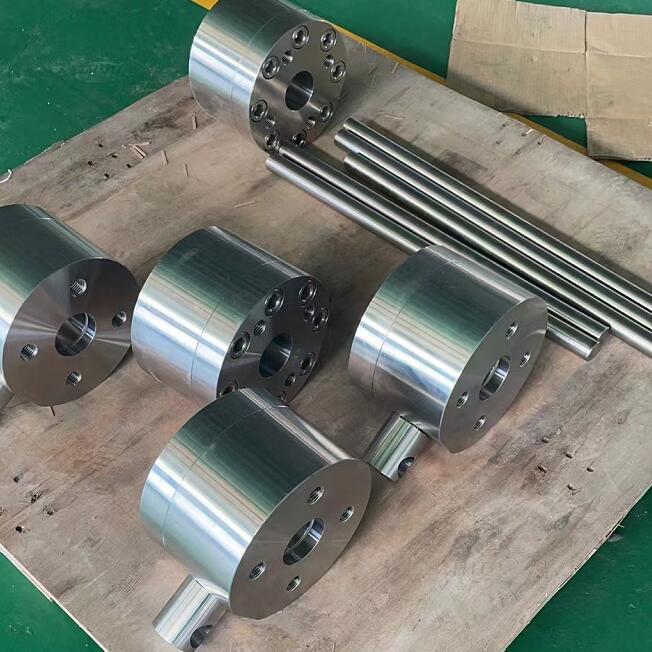

Adler FA2 type split wafer Ball Valve

  • Port size:1/2″ to 4″,DN15-DN100
  • Pressure:PN10-100 bar,150LB-900LB
  • Structure:2 Piece split body
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃
  • Body material:Carbon steel,stainless steel,etc.
  • Connection:Wafer type
  • Feature:Customized order is acceptable.
China split body wafer ball valve manufacturer, factory and supplier for Adler FA2 type and Magnum type wafer ball valve. Adler FA2 type split wafer ball valve is 2 piece split forged body. This range of  Adler FA2 type split wafer ball valve is manufactured in both forged carbon steel and stainless steel variations. Adler FA2 type split wafer ball valve is suitable for intercepted fluids, including air, water, gas, petroleum, and petrochemical products and aggressive fluids.

Adler FA2 type split wafer ball valve specification:
1/2″ – 12″ (inches) sizes available
ISO 5211 Actuator Mounting Pad
Body: WCB, CF8,CF8M, A105,F304,F316
Ball: F316/F304
Stem: Blow-out-proof design as standard, SS304/316 or other material
Temperature Rating: -20 °C to 400°F
Working Pressure: Class 150/300, PN10-40, JIS 10k/20k
Face-to-Face: ANSI B16.10, DIN3202 and JIS B2002
Flange Dimensions: ANSI B16.5, DIN2632/2633 & DIN2634/2635 and JIS B2212
TEST STANDARD: API 598, EN12266, and ISO5208
Pneumatic or electric actuator as option
Anti – Static Device as option
API 607 fire safe design as option
Gland or Belleville washers as option for packing
V-ring adjustable stem packing as option

Adler FA2 type split wafer Ball ValveAdler FA2 type split wafer Ball Valve
