Ball valve manufacturer

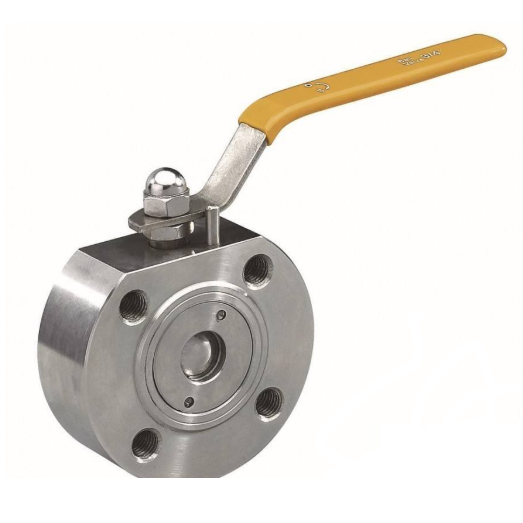

China wafer ball valve factory and supplier

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:Floating,full bore
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Wafer type
  • Feature:Short length,Compact structure
Shanghai Huixuan is China wafer ball valve factory and supplier,wafer ball valve manufacturer,mainly produce manual wafer ball valve,electric wafer ball valve,pneumatic wafer ball valve,cast steel wafer ball valve, forged steel wafer ball valve,stainless steel wafer ball valve and other wafer ball valve.

Wafer ball valve introduction
Wafer ball valve can be cast steel or forged steel body,Wafer ball valve has the advantages of short structure length, light weight, convenient installation and material saving.Wafer ball valve is suitable for short line pipe and special space installation and use, with compact structure,short length,small volume, short part wafer ball valve seat and flange end face distance is close, less material retention, superior sealing performance and other characteristics.

Wafer ball valvee seat use the elastic sealing structure, the sealing is reliable, opens and closes easily.With fire-resistant structure, in case of fire,Wafer type short pattern ball valve can still operate reliably and have good sealing. According to the needs of users, anti-static structure can be set.The switch with hole positioning plate is set, which can be locked according to the need to prevent misoperation.

Wafer ball valve choose different material, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, and other media.

Wafer ball valve Performance parameter
Nominal size: DN15~300mm
Nominal pressure: 1.0Mpa-100Mpa,CL150,CL300,CL600
Connection: ultra-thin flange type, sandwiched type
Structural form: straight through
Spool type: O - type spool
Flow characteristics: fast opening characteristics
Spool material: F304, F316, etc
Sealing materials: PTFE, PPL, metal sealing
Body design: straight cast ultra short ball valve

Wafer ball valve specification
Body material:WCB,304, 316, A105, F304, F316, etc
Temperature range: PTFE: ≤150°C, PPL: ≤200°C, hard seal: ≤450°C
Applicable temperature: -17°C~450°C
Wafer type short pattern ball valve Type of drive: manual,electric,pneumatic
Applicable medium: Wafer ball valve is used in all kinds of pipeline, used to cut off or connect the medium in the pipeline, choose different materials, can be respectively applicable to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.
