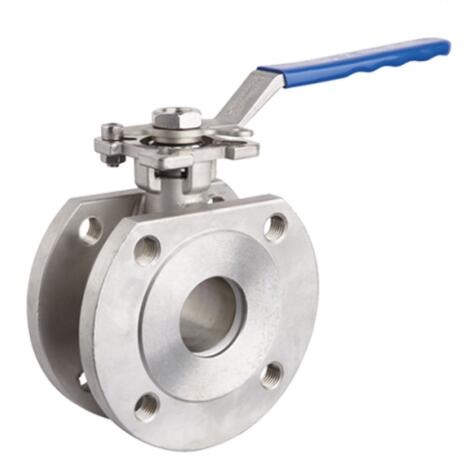

SS 304 316 wafer type flanged ball valve

China wafer type ball valve manufacturer,factory and supplier,SS 304 316 wafer type flanged ball valve has the advantages of short structure length, light weight, convenient installation and material saving.SS 304 316 wafer type flanged ball valve is suitable for short line pipe and special space installation and use, with compact structure,short length,small volume,SS 304 316 wafer type flanged ball valvee seat and flange end face distance is close, less material retention, superior sealing performance and other characteristics.SS 304 316 wafer type flanged ball valve choose different material, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, and other media.

SS 304 316 wafer type flanged ball valve Performance parameter
Nominal size: DN15~300mm
Nominal pressure: 1.0Mpa-100Mpa,CL150,CL300,CL600
Connection: ultra-thin flange type, sandwiched type
Structural form: straight through
Spool type: O - type spool
Flow characteristics: fast opening characteristics
Spool material: 304, 316, F304, F316, etc
Sealing materials: PTFE, PPL, metal sealing
Body design: straight cast ultra short ball valve
Wafer type short pattern ball valveBody material:304, 316, A105, F304, F316, etc
Temperature range: PTFE: ≤150°C, PPL: ≤200°C, hard seal: ≤450°C
Applicable temperature: -40°C~450°C
Wafer type short pattern ball valve Type of drive: manual,electric,pneumatic
Applicable medium: SS 304 316 wafer type flanged ball valve is used in all kinds of pipeline, used to cut off or connect the medium in the pipeline, choose different materials, can be respectively applicable to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.
