Ball valve manufacturer

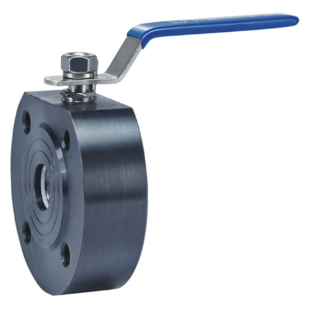

A105 A105N Forged wafer ball valve

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:1PC,Short length, wafer type
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:A105 A105N or WCB,304, 316, F304, F316, etc
  • Connection:Wafer type
  • Feature:Short length,Compact structure
A105 A105N Forged wafer ball valve introduction
A105 A105N Forged wafer ball valve can be 1pc structure,forged or cast steel with manual,pneumatic,electric actuator, A105 A105N Forged wafer ball valve has the advantages of short structure length, light weight, convenient installation and material saving.A105 A105N Forged wafer ball valve suitable for short line pipe and special space installation and use, with compact structure,short length,small volume,A105 A105N Forged wafer ball valve seat and flange end face distance is close, less material retention, superior sealing performance and other characteristics.

A105 A105N Forged wafer ball valve seat use the elastic sealing structure, the sealing is reliable, opens and closes easily.With fire-resistant structure, in case of fire,A105 A105N Forged wafer ball valve can still operate reliably and have good sealing. According to the needs of users, anti-static structure can be set.The switch with hole positioning plate is set, which can be locked according to the need to prevent misoperation.

A105 A105N Forged wafer ball valve choose different material, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, and other media.

A105 A105N Forged wafer ball valve Performance parameter
Nominal size: DN15~300mm
Nominal pressure: 1.0Mpa-100Mpa,CL150,CL300,CL600
Connection: ultra-thin flange type, sandwiched type
Structural form: straight through
Spool type: O - type spool
Flow characteristics: fast opening characteristics
Spool material: A105 A105N or WCB,304, 316, F304, F316, etc
Sealing materials: PTFE, PPL, metal sealing
Body design: straight cast ultra short ball valve
Wafer type short pattern ball valve Body material:A105 A105N or WCB,304, 316, F304, F316, etc
Temperature range: PTFE: ≤150°C, PPL: ≤200°C, hard seal: ≤450°C
Applicable temperature: -17°C~450°C
A105 A105N Forged wafer ball valveType of drive: manual,electric,pneumatic
Applicable medium: A105 A105N Forged wafer ball valve is used in all kinds of pipeline, used to cut off or connect the medium in the pipeline, choose different materials, can be respectively applicable to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
