Ball valve manufacturer

Magnum split body wafer ball valve

  • Port size:1/2″ to 12″,DN15-DN300
  • Pressure:PN10-100 bar,150LB-900LB
  • Structure:2 Piece split body
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃
  • Body material:Different steel material is optional
  • Connection:Wafer type
  • Feature:Customized order is acceptable.
Magnum split body wafer ball valve manufacturer, factory and supplier. Magnum split body wafer ball valve is 2 piece split forged body. This extensive range of Magnum split body wafer ball valve is manufactured in both forged carbon steel and stainless steel variations. Magnum split body wafer ball valve is suitable for intercepted fluids, including air, water, gas, petroleum, and petrochemical products and aggressive fluids.

Magnum split body wafer ball valve specification:
1/2″ – 12″ (inches) sizes available
ISO 5211 Actuator Mounting Pad
Body: WCB, CF8,CF8M, A105,F304,F316
Ball: F316/F304
Stem: Blow-out-proof design as standard, SS304/316 or other material
Temperature Rating: -20 °C to 400°F
Working Pressure: Class 150/300, PN10-40, JIS 10k/20k
Face-to-Face: ANSI B16.10, DIN3202 and JIS B2002
Flange Dimensions: ANSI B16.5, DIN2632/2633 & DIN2634/2635 and JIS B2212
TEST STANDARD: API 598, EN12266, and ISO5208
Pneumatic or electric actuator as option
Anti – Static Device as option
API 607 fire safe design as option
Gland or Belleville washers as option for packing
V-ring adjustable stem packing as option

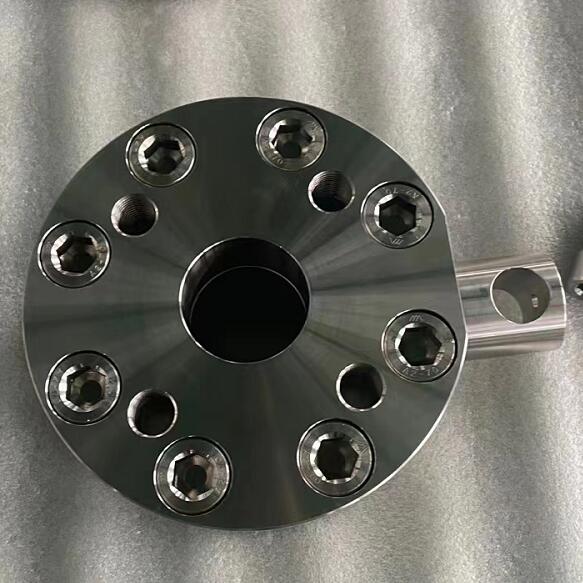

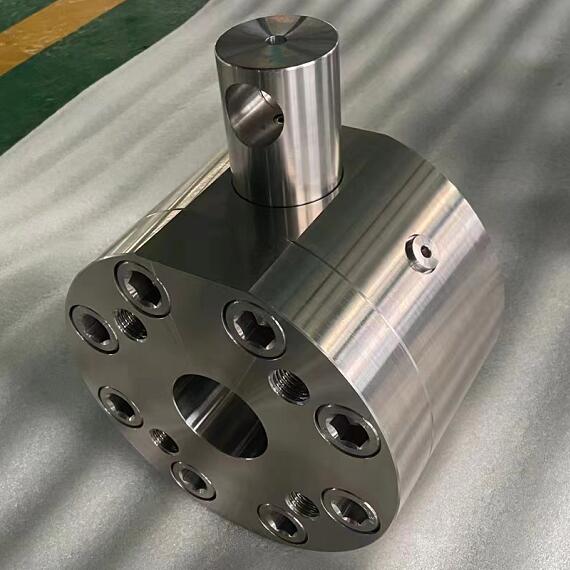

Magnum split body wafer ball valveMagnum split body wafer ball valve
