Ball valve manufacturer

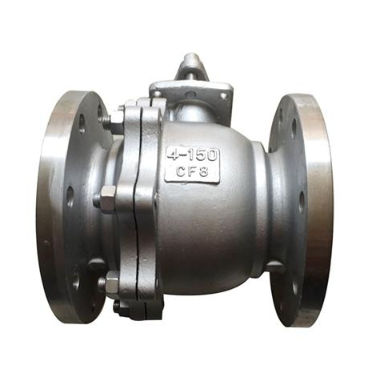

100mm 125mm 150mm 200mm ball valve

  • Port size:100mm 125mm 150mm 200mm
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:Floating,full bore
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:100mm 125mm 150mm 200mm ball valve for sale
100mm 125mm 150mm 200mm ball valve introduction:
100mm 125mm 150mm 200mm ball valve is 2pc or 3 pc full bore or reduced bore,floating structure with flange ,welded or threaded end.40mm 50mm 65mm 80mm ball valve is suitable for Class150~Class1500, PN16~PN100, JIS 10K~JIS 20K pipeline,40mm 50mm 65mm 80mm ball valve used to cut off or connect the medium in the pipeline, choose different materials,40mm 50mm 65mm 80mm ball valve can be used respectively for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.40mm 50mm 65mm 80mm ball valve can be widely used in papermaking, petrochemical, chemical industry, metallurgy, electric power, environmental protection, petroleum, light industry and other industrial departments of automatic control system.

100mm 125mm 150mm 200mm ball valve Specification:
Product Name 100mm 125mm 150mm 200mm ball valve
1. Material WCB 304 316 CF8 CF8M or others
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port or reduced port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange or others
6. Working Temp.  -29~150℃,-40~450℃, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

100mm 125mm 150mm 200mm ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

100mm 125mm 150mm 200mm ball valve performance
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
