Ball valve manufacturer

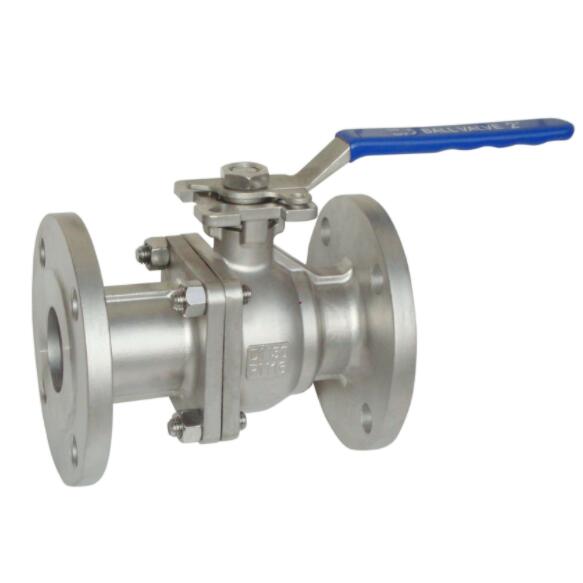

China stainless steel locking ball valve

Port size：DN15-DN100;1/2''-4''
Pressure：PN16 ~ 100,150LB ~ 600LB
Structure：1PC,2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Carbon Steel, Stainless Steel,forged steel
Connection：Flanged,welded,threaded.
Feature：Locking handle is installed

Product Description

China locking ball valve,lockable ball valve manufacturer,factory and supplier,China stainless steel locking ball valve features a lead-free lockable handle. The locking handle allows the ball valve to be locked into an open or closed position, so that the operator has even greater control over its use.

China stainless steel locking ball valve Specification:

Product Name	China stainless steel locking ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	150LB~600LB
5. Connection Ends	Flange
6. Working Temp.	-20~180ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

China stainless steel locking ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

China stainless steel locking ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE/Delvon/PEEK seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
