Ball valve manufacturer

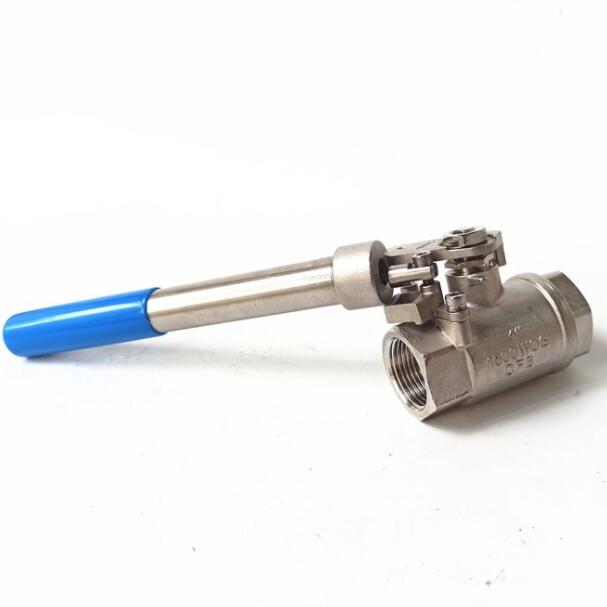

China deadman handle ball valve

  • Port size:DN15-DN100;1/2''-4''
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Structure:Spring return handle for self closing
  • Medium:Water,steam,oil,gas
  • Temperature :-20~180ºC,-46~450ºC
  • Body material:Carbon Steel, Stainless Steel,forged steel
  • Connection:Flanged,welded,threaded.
  • Feature:Spring return handle for auto reset
China Deadman handle ball valve manufacturer,factory and supplier for deadman ball valve with spring return handle ,which forces someone to manually open the valve, and will automatically shut itself off when the handle is let go by a spring action. Without the pressure against the spring, the handle will return to its original closed position. Deadman handle ball valve could also be referred to as a "spring return handle ball valve".

China Deadman handle ball valve with spring return handle is suitable for chemical industry, petroleum, electric power, pharmacy, beer, food, dairy beverage, cosmetics and engineering pipeline and other fields.


China Deadman handle ball valve with spring return handle specification
Product Name China Deadman handle ball valve with spring return handle
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size 1/2~4 inch ( DN15~DN100)
3. Port Full Port
4. Working Pressure PN10-PN100 CL150-CL600
5. Connection Ends Flange,SW,thread,clamp
6. Working Temp.  -20~150ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598
