Ball valve manufacturer

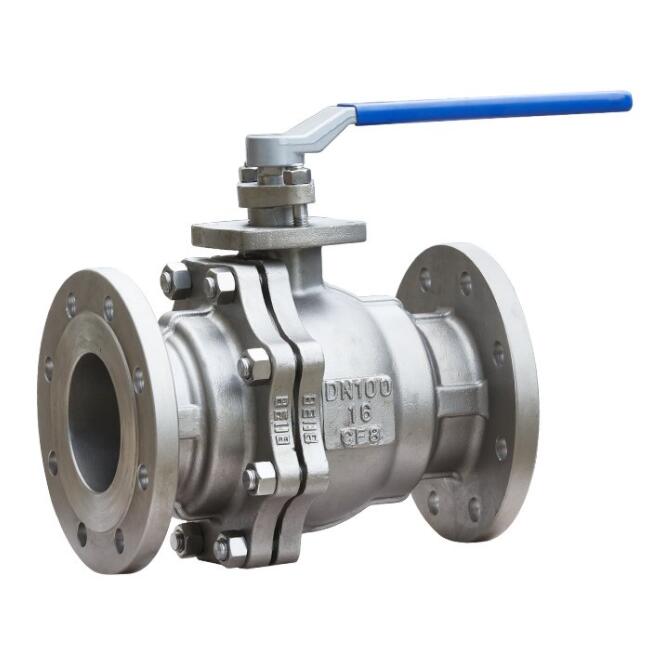

4 inch DN100 100mm flanged ball valve

  • Port size:4 inch DN100 100mm
  • Pressure:PN16 ~ 420,150LB ~ 2500LB
  • Structure:2PCS,Floating ball
  • Medium:Water,steam,oil,gas
  • Temperature :-20~180ºC,-46~450ºC
  • Body material:Carbon Steel, Stainless Steel,forged steel
  • Connection:Flanged end or others
  • Feature:Different material is optional
China flanged ball valve manufacturer,factory,company and supplier,4 inch DN100 100mm flanged ball valve is 2 PCS,Floating structure,4 inch DN100 100mm flanged ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries.

4 inch DN100 100mm flanged ball valve Specification:
Product Name 4 inch DN100 100mm flanged ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size 4 inch DN100 100mm
3. Port Full Port
4. Working Pressure 150LB~2500LB
5. Connection Ends Flange
6. Working Temp.  -20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

4 inch DN100 100mm flanged ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

4 inch DN100 100mm flanged ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
