Ball valve manufacturer

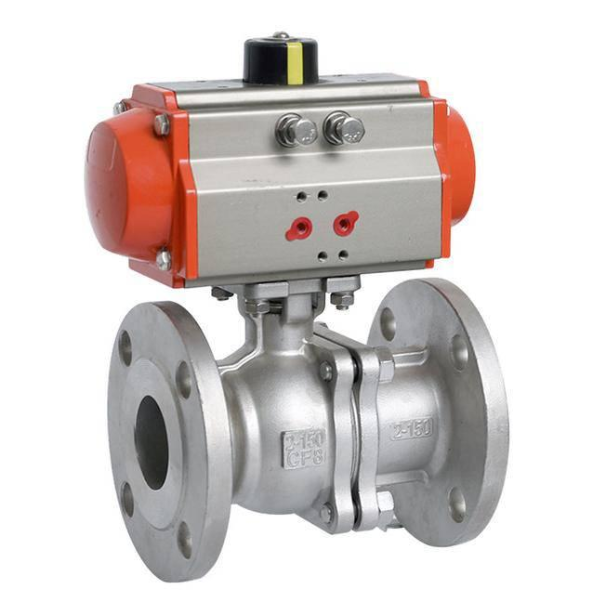

Pneumatic stainless steel ball valve factory

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:CF8 CF8M CF3 CF3M or other stainless steel
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:China Pneumatic stainless steel ball valve factory
Shanghai Huixuan is China Pneumatic stainless steel ball valve factory and manufacturer,which also produce carbon steel pneumatic ball valve,stainless steel pneumatic ball valve,PTFE PFA lined pneumatic ball valve,ceramic pneumatic ball valve,trunnion pneunatic ball valve,segmented pneumatic ball valve,high pressure pneumatic ball valve,cryogenic pneumatic ball valve,3 way pneumatic ball valve and other pneumatic ball valves.

Pneumatic stainless steel ball valve is composed of double acting or single acting pneumatic actuator and ball valve.Pneumatic stainless steel ball valve can be equipped with travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to achieve switch operation, and send two pairs of passive contact signals indicating the valve switch.Pneumatic stainless steel ball valve is particularly suitable for the medium is viscous, containing particles, fiber properties of the occasion.Pneumatic stainless steel ball valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, papermaking and other industrial automatic control system, for remote centralized control or local control.

Pneumatic stainless steel ball valve product range:
-Ball valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Pneumatic stainless steel ball valve pneumatic actuator information:
1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time

Pneumatic stainless steel ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
