Ball valve manufacturer

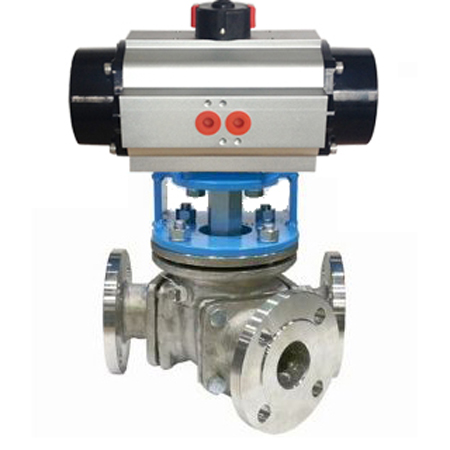

Y type 135 degree pneumatic ball valve

  • Port size:DN50~350
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Structure:Y TYPE, 135°
  • Medium:Powder or others
  • Temperature :-29~180℃,-40~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Feature:Y 120°, Y 135° is optional
Y type 135 degree pneumatic ball valve introduction
Y type 135 degree pneumatic ball valve has each other into 120°, 135° two types of body structure, Y type 135 degree pneumatic ball valve is flow path flat, small fluid resistance, strong flow capacity.When switching medium has no retention,Y type 135 degree pneumatic ball valve will not cause secondary pollution.Y type 135 degree pneumatic ball valve is automatic control with electric actuators and pneumatic actuators.

Y type 135 degree pneumatic ball valve Feature
1. The flow channel is flat, the fluid resistance is small, the flow ability is strong.
2. The medium has no retention and will not cause secondary pollution.
3. High platform design in accordance with ISO5211 standard, Y type 135 degree pneumatic ball valve can be ISO5211 standard actuator, direct connection.Good compatibility
4. Silicon sol precision casting valve body, compact structure, high dimensional accuracy.The appearance is exquisite.

Y type 135 degree pneumatic ball valve technical specification
Pneumatic actuator: double action, single action normally closed, single action normally open
Accessories:optional directional solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism
Voltage:AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter: DN50-350mm
Nominal pressure: 1.6mpA-2.5mpa
Suitable temperature:PTFE:-30~+180℃, hard seal
Connection mode: flange type
Valve body structure: Y 120°, Y 135°, Y 45°
Body material: WCB, 304, 316, 316L or others
Valve ball material: WCB, 304, 316, 316L or others
Seat lining: PTFE, PPL, hard seal
Medium:Suitable for medium powder

Y type 135 degree pneumatic ball valve structure
Y type 135 degree pneumatic ball valve structure

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
