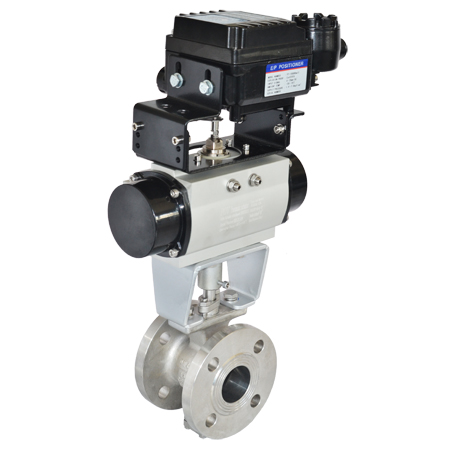

Flange V port segment pneumatic ball valve

Flange V port segment pneumatic ball valve introduction
Flange V port segment pneumatic ball valve is a valve with a v-shaped opening designed for the ball core channel, with accurate flow characteristics and control functions.Through 0-90 degree rotation action,Flange V port segment pneumatic ball valve to achieve flow regulation.No clearance friction between the seat and the ball for Flange V port segment pneumatic ball valve, with excellent shear force and self-cleaning ability, Flange V port segment pneumatic ball valve is especially suitable for the fluid medium with fiber or with small particles.

Flange V port segment pneumatic ball valve Feature
1. No clearance friction between the seat and the sphere, with excellent shear force and self-cleaning ability
2. With accurate flow characteristics and control functions.
3. High platform design in accordance with ISO5211 standard, Wafer type segment pneumatic ball valve can be  ISO5211 standard actuator, direct connection.Good compatibility
4. Compact structure, high dimensional accuracy.The appearance is exquisite.

Flange V port segment pneumatic ball valve technical specification
Pneumatic actuators: double action, single action normally closed, single action normally open
Accessories:optional directional solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism
Voltage: AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter: DN25-300mm
Nominal pressure: PN10, PN16, PN25, PN40,CL150,CL300
Suitable temperature: PTFE:-30~+180℃, hard seal
Connection mode: sandwich type, flange type
Valve body design: Type A
Body material: WCB, 304, 316, 316L,or others
Valve ball material: WCB, 304, 316, 316L,or other
Seat lining: PTFE, alloy steel (surfacing carbide, chromium plating, tungsten nitride)
Medium:Suitable for medium water, liquid, gas, oil, acid and alkali corrosive medium
