Ball valve manufacturer

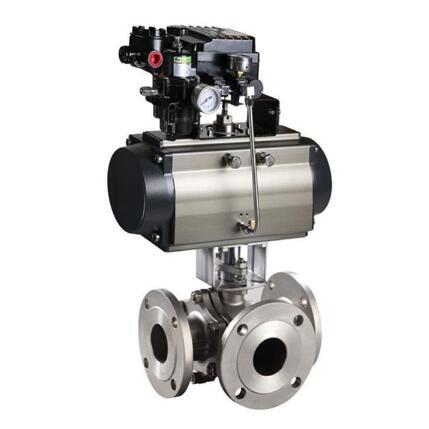

Stainless steel pneumatic three way ball valve

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Three way:T Port or L port
  • Medium:Water,steam,oil,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:CF8 CF8M CF3 CF3M or other stainless steel
  • Connection:Flange
  • Feature:Confirm the flow direction before order
Stainless steel pneumatic three way ball valve introduction:
Stainless steel pneumatic three way ball valve is composed of CF8,CF8M,CF3,CF3M or other stainless sreel three way ball valve and single or double acting pneumatic actuator, Stainless steel pneumatic three way ball valve is mainly composed of T or L three way ball valve and pneumatic actuator connected, Stainless steel pneumatic three way ball valve is mainly used in the direction of the pipeline intermediary, confluence and shunt.The Pneumatic  L-type three way ball valve is to switch or cut off the flow direction of two perpendicular channels of the medium, plays a distribution role, and the T-type three way ball valve not only to cut the flow direction of the medium, but also can make the three channels connected to each other or close any one of the channels, play the role of diversion, confluence.The Stainless steel pneumatic three way ball valve can be installed on its actuator valve positioner and other related accessories, can control the ball valve ball core operation, and then play the automatic control of the pipeline medium.

Stainless steel pneumatic three way ball valve features:
(1) Stainless steel pneumatic three way ball valveis good sealing effect, soft sealing PTFE elastic deformation can achieve no leakage seal,
(2) Stainless steel pneumatic three way ball valve is easy to install, which can be used as the flow inlet of the medium * with no leakage.
(3) Multi-purpose of one valve: Stainless steel pneumatic three way ball valve can be manufactured into L-shaped opening or T-shaped opening, which can meet different working conditions.
(4) Stainless steel pneumatic three way ball valve is rapid response, good liquidity, small opening and closing torque, long service life.
(5) Stainless steel pneumatic three way ball valve is wide range of application, which can meet the requirements of changing the flow direction of the medium in each pipeline system or achieving the diversion or confluence of the medium.

Stainless steel pneumatic three way ball valve Main technical parameters:
Nominal size: Flange type: DN15~300mm, thread type: 1/2"~12"
Nominal pressure: 1.6mpa, 2.5mpa, 4.0mpa, 6.4mpa
3 way ball valve connection: Flange type, internal thread
Structure: L-type three-way valve body, T-type three-way valve body
Spool type: O ball spool
3 way ball valve flow characteristics: fast opening characteristics
Spool material: stainless steel 304, stainless steel 316, stainless steel 316L, etc
Sealing materials: PTFE,PPL,metal sealing (hard alloy)
Body material: Carbon steel (WCB), stainless steel 304, stainless steel 316, stainless steel 316L, etc
Service temperature: PTFE: -29°C~178°C, metal seal: -29°C~450°C
3 way ball valve scope of use: water, gas, steam, gas, oil, corrosive medium, etc
Type of drive for pneumatic ball valve: compressed air (4~7bar) (with hand wheel)
Air source interface: G1/4, G1/8, G3/8, G1/2
Control mode of pneumatic ball valve: switching mode, regulating type (4-20mA analog signal)


Stainless steel pneumatic three way ball valve flow direction:
Pneumatic three way ball valve flow direction

L-shaped Stainless steel pneumatic three way ball valve can only connect or cut off two perpendicular orthogonal pipelines, and cannot maintain the interconnection of the third pipeline at the same time, only playing the role of distribution.
T-type Stainless steel pneumatic three way ball valve can make three orthogonal pipe connected to each other or cut off any third channel, to achieve the function of two in and one out or one in and two out, play the role of diversion, confluent.

Stainless steel pneumatic three way ball valve Standard Specification:
(1) Design and manufacturing: GB/T12237-1989, API608
(2) Inspection and testing: GB/T12237-1992, API598
(3) Flanged connection: JB/T79--2-1994, ASME/ANSI 165
(4) Structure length: JD-2002

Stainless steel pneumatic three way ball valve actuator parameters:
Double-acting actuators: switching actions are driven by air source, ventilation on, ventilation off, and air source failure to maintain the current position.
Single-acting actuators: the switching action is only on or off driven by the air source, while the switching action is reversed by the spring.
Single-acting normally closed type: ventilation on, air break off, air source fault off.
Single acting normally open type: ventilation closed, air break open, air source fault open.
Cut off accessories: single solenoid valve, double solenoid valve, limit switch back signal
Regulating accessories: electric positioner, pneumatic positioner, electrical converter
Reply: also known as limit switch, remote feedback switch signal (explosion-proof)
Solenoid valve: two-position five-way, single-position three-way (explosion-proof)
Triplet: it can stabilize the air source, filter and add lubricating oil to the cylinder
Air source treatment accessories: air filter pressure reducing valve, air source treatment triplet
Manual mechanism: Turn handwheel mechanism, open valve and close valve manually

How to order
Stainless steel pneumatic three way ball valve:
1. For special requirements of Stainless steel pneumatic three way ball valve , the following instructions shall be provided in the order contract:
A.Structure length;
B.Connection form;
C.Nominal diameter;
D.Product use medium, temperature, pressure range, etc.
E.Tests, inspection standards and other requirements.
2, Stainless steel pneumatic three way ball valve can be configured according to customer specific requirements of various driving devices.

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
