Ball valve manufacturer

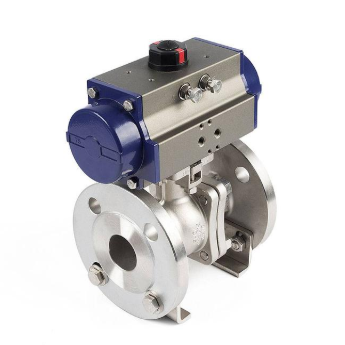

Pneumatic actuator 304 316 ball valve

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating,full bore
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:304 316 CF8 CF8M or other material
  • Connection:Flange or others
  • Feature:Different material is optional
Pneumatic actuator 304 316 ball valve introduction:
Pneumatic actuator 304 316 ball valve is a ball with a circular hole for opening and closing parts, the ball with the ball valve stem rotation, in order to achieve the opening and closing action of the pneumatic ball valve,Pneumatic actuator 304 316 ball valve in the pipeline is mainly used to cut off, distribution and change the direction of the flow of the medium,Pneumatic actuator 304 316 ball valve only needs to be rotated 90 degrees of operation and very small torque can be closed tightly.Completely equal body cavity for the medium to provide little resistance, through the flow.

Pneumatic actuator 304 316 ball valve is not only simple structure, good sealing performance, and within a certain range of nominal pass after small volume, light weight, less material consumption, installation size is small, and the drive torque is small, easy to operate, easy to realize the rapid opening and closing, easy operation and maintenance,Pneumatic actuator 304 316 ball valve is suitable for water, solvents, acids and natural gas and other general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene.

Pneumatic actuator 304 316 ball valve Main performance parameter
Pneumatic actuator: double action, single action normally closed, single action normally open
Accessories: optional directional solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism
Nominal diameter:DN15-600mm
Nominal pressure: 1.6mpa - 6.4mpa CL150-CL600
Suitable temperature:-29~150℃,-40~450℃
Connection mode: flange type, thread type, welding type, clamp quick-install type
Valve body structure: O - type floating ball
Body material:304, 316, 316L, etc
Valve ball material:304, 316, 316L, etc
Seat lining: PTFE, PPL, hard seal, etc
Pneumatic actuator 304 316 ball valve Suitable medium: steam, liquid water, gas, etc

Pneumatic actuator 304 316 ball valve features
1. Pneumatic actuator 304 316 ball valve fluid resistance is small, with the lowest flow resistance (in fact, zero), pneumatic ball valves generally have reduced diameter and full size two structures.Regardless of that kind of structure,Pneumatic flanged stainless steel ball valve flow resistance coefficient is relatively small.In particular, the so-called full flow type, that is, the diameter of the ball valve, because its channel diameter is equal to the pipe diameter, local resistance loss is only the same length of the friction resistance of the pipe, that is, in all valves, the flow resistance of this pneumatic ball valve is the least.
2. Pneumatic actuator 304 316 ball valve opening and closing switch is fast and convenient, because the ball valve in general only need to turn the handle 90° to complete the full open or close action, it is easy to achieve fast opening and closing.It can realize fast opening and closing, and the opening and closing time of some structures is only 0.05 ~ 0.1s, so as to ensure that it can be used in the automation system of the test bench.Quick opening and closing valve, no impact in operation.
3.Pneumatic actuator 304 316 ball valve sealing performance is good, at present, the seat of the vast majority of pneumatic ball valve is made of polytetrafluoroethylene and other elastic materials, metal and non-metallic materials of the sealing pair, usually known as soft seal.Generally speaking, the sealing of soft seal is easy to guarantee, and the machining precision and surface roughness of the seal surface are not very high.
4. Pneumatic actuator 304 316 ball valve service life is long, due to PTFE has good self-lubrication, and the friction and wear of the ball is small, and because of the improvement of the ball processing technology, the roughness is reduced, thus improving the service life of the ball valve.According to the standard field valve company in the laboratory on the ball valve life test, the number of switching more than 100,000 times.
5. Pneumatic actuator 304 316 ball valve ball closure can be automatically positioned in the position, and can withstand the high pressure difference when closed.
6. Complete bidirectional sealing of Pneumatic actuator actuated ball valve can be achieved within the range of earth pressure and temperature.
7. When Pneumatic actuator 304 316 ball valve fully open and fully closed, the sealing surface of the ball and valve seat is isolated from the medium, so the medium passing through the valve at high speed will not cause the erosion of the sealing surface.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
