Ball valve manufacturer

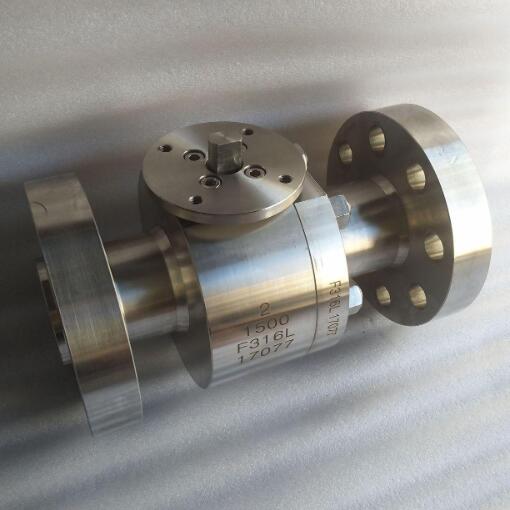

F316 F316L body high pressure ball valve

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:CL600-CL2500
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:F304 F316 F316L or others
  • Connection:Flange or others
  • Feature:High pressure ball valve
F316 F316L body high pressure ball valve introduction:
China high pressure ball valve manufacturer,factory and supplier for F316 F316L body high pressure ball valve,which is 2 PC or 3PC design,full bore or reduced bore,F316 F316L body high pressure ball valve is a kind of high pressure service valve for 150LB to 2500LB,PN16 to PN420 pressure class with A105 F304 F316 or other forged steel material.F316 F316L body high pressure ball valve is most suitable for switch and cut off valve use with manual, pneumatic,electric control.F316 F316L body high pressure ball valve is applicable to water, solvent, acid and gas, such as general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.

F316 F316L body high pressure ball valve specification:
1.Full port, 1/2"~12" (DN15~DN300)
2. Nonimal pressure.:600LB to 2500LB,PN100 to PN420
3. Working temperature.:-29~180℃,-40~450℃
4. Forged steel:A105 F304 F316 or others
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. End:Flange, thread,BW,SW

F316 F316L body high pressure ball valve standard:
Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard: ASME B16.34/DIN3230
Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
