Ball valve manufacturer

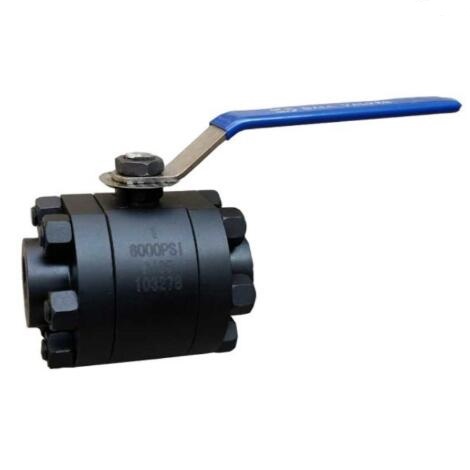

6000 PSI High pressure forged ball valve

  • Port size:1/2"~2" (DN15~DN50)
  • Pressure:6000 PSI
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:A105 LF2 F304 F316 F316L or others
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:China High pressure ball valve manufacturer
China high pressure ball valve manufacturer,factory,company and supplier,6000 PSI High pressure forged ball valve is 3pc design with thread or BW,SW end,6000 PSI High pressure forged ball valve is a kind of high pressure service valve with A105 F304 F316 or other forged steel material.6000 PSI High pressure forged ball valve in the pipeline is mainly used to cut off, distribution and change the flow direction of the medium.6000 PSI High pressure forged ball valve most suitable for switch and cut off valve use with manual, pneumatic,electric control,which is applicable to water, solvent, acid and gas, such as general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.

6000 PSI High pressure forged ball valve specification:
1.Full port, 1/2-2"
2. Nonimal pressure.:6000 PSI
3. Working temperature.:-29~180℃,-40~450℃
4. Forged steel:A105,F304 ,F316 or others
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. End:Flange, thread,BW,SW

6000 PSI High pressure forged ball valve standard:
Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard: ASME B16.34/DIN3230
Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
