Ball valve manufacturer

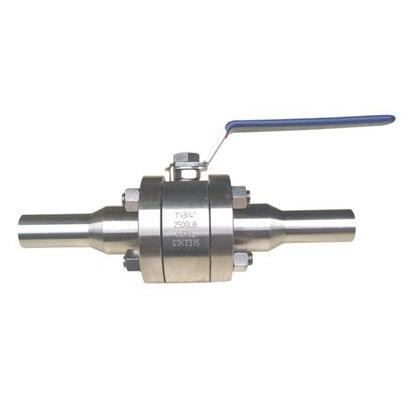

High pressure extended body ball valve

  • Port size:1/2"~4" (DN15~DN100)
  • Pressure:CL150-CL2500
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:A105 LF2 F304 F316 F316L or others
  • Connection:Welded end with extended body
  • Feature:Extended length is on client requirement
High pressure extended body ball valve is available in weld end, full boret designs, on request a full range strength welded joint is available.High pressure extended body ball valve is 3pc design a kind of high pressure service valve for 150LB to 2500LB,PN100 to PN420 pressure class with A105 F304 F316 or other forged steel materialHigh pressure extended body ball valve in the pipeline is mainly used to cut off, distribution and change the flow direction of the medium, it only needs to use a rotation of 90 degrees of operation and a small torque to close tight.High pressure extended body ball valve is most suitable for switch and cut off valve use with manual, pneumatic,electric control.High pressure extended body ball valve is applicable to water, solvent, acid and gas, such as general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.

High pressure extended body ball valve specification:
1.Full port, 1/2"~4" (DN15~DN100)
2. Nonimal pressure.:150LB to 2500LB,PN16 to PN420
3. Working temperature.:-29~180℃,-40~450℃
4. Forged steel:A105 F304 F316 or others
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. End:BW,SW with extended body

High pressure extended body ball valve standard:
Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard: ASME B16.34/DIN3230
Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
