Ball valve manufacturer

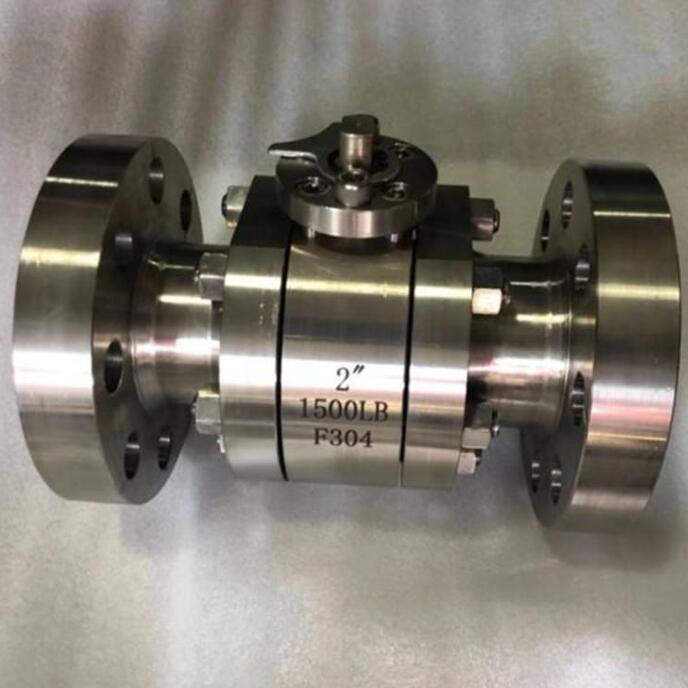

2 inch Class 1500 High pressure ball valve

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:Class 1500
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:Forged steel
  • Connection:Flange or others
  • Feature:China High pressure ball valve manufacturer
China high pressure ball valve manufacturer,factory,company and supplier, 2 inch Class 1500 High pressure ball valve is 3pc design  with thread or BW,SW end,High pressure ball valve is a kind of high pressure service valve for 600LB to 2500LB,PN100 to PN420 pressure class with A105 F304 F316 or other forged steel material.2 inch Class 1500 High pressure ball valve in the pipeline is mainly used to cut off, distribution and change the flow direction of the medium.2 inch Class 1500 High pressure ball valve most suitable for switch and cut off valve use with manual, pneumatic,electric control,which is applicable to water, solvent, acid and gas, such as general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.

2 inch Class 1500 High pressure ball valve specification:
1.Full port, 2"
2. Nonimal pressure.:1500LB
3. Working temperature.:-29~180℃,-40~450℃
4. Forged steel:F304 or others
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. End:Flange, thread,BW,SW

2 inch Class 1500 High pressure ball valve standard:
Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard: ASME B16.34/DIN3230
Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
