Ball valve manufacturer

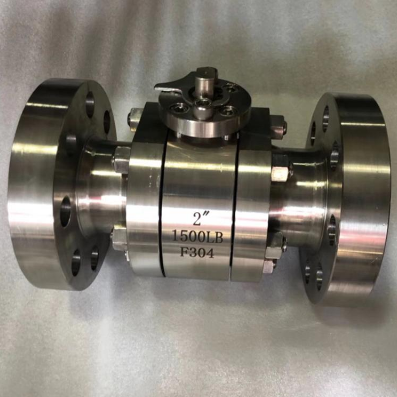

1500LB 2500LB F304 F316 High pressure ball valve

  • Port size:1/2'' ~ 4''( 15mm ~ 100mm)
  • Pressure:1500LB ~ 2500LB
  • Structure:Full bore, 3PC
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃,-40~450℃,
  • Body material:Forged steel F304 F316 etc.
  • Connection:Flange
  • Feature:Different material is optional
1500LB 2500LB F304 F316 High pressure ball valve introduction:
1500LB 2500LB F304 F316 High pressure ball valve is a kind of high pressure service valve for 1500LB to 2500LB pressure class with F304 F316 or other forged stainless steel material.1500LB 2500LB F304 F316 High pressure ball valve in the pipeline is mainly used to cut off, distribution and change the flow direction of the medium, it only needs to use a rotation of 90 degrees of operation and a small torque to close tight.1500LB 2500LB F304 F316 High pressure ball valve is most suitable for switch and cut off valve use with manual, pneumatic,electric control.

1500LB 2500LB F304 F316 High pressure ball valve main characteristics of compact structure, reliable sealing, simple structure, convenient maintenance, sealing surface and the spherical often in the closed state, not easily be medium erosion, easy operation and maintenance, 1500LB 2500LB F304 F316 High pressure ball valve is applicable to water, solvent, acid and gas, such as general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.The ball valve body may be integral or 2 PCS or 3 PCS structure..

1500LB 2500LB F304 F316 High pressure ball valve structure features:
1. All parts of this product are forgings
2. Lower mounted valve stem and equipment inverted seal structure are adopted
3. Inlaid seat with O-ring behind the seat to ensure no leakage of media
4. The sealing surface is made of nylon 1010, whose friction coefficient is usually 1/3 of babbitt alloy, so it is a natural slippery material.But its flexion and impact strength and high ductility are comparable to those of metals.

1500LB 2500LB F304 F316 High pressure ball valve specification:
1.Full port, 1/2"~4" (DN15~DN100)
2. Nonimal pressure.: 1500LB / 2500LB
3. Working temperature.:-29~180℃,-40~450℃
4. Investment casting
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. Flange end:RTJ

1500LB 2500LB F304 F316 High pressure ball valve optional material:
No. Part Material
1 Bonnet ASTM  A105+ENP  A182-F6,F304,F316,F316L,F304L,F51
2 Seat PTFE  RPTFE  PEEK  PPL
3 Body Gasket PTFE  Graphite
4 Thrust-Washer A105+ENP  A182-F6,F304,F316,F316L,F304L,17-4PH,F51
5 Stem Stainless Steel
6 Stop Nut Carbon Steel
7 Spring Gasket A216-WCB 10256+Cr
8 Lever ASTM  A182-F304,F316
9 Backup Ring 1015+Cr  Carbon Steel+Cr
10 Limited Plate Stainless Steel
11 Positioning pin PTFE  Graphite
12 Packing PTFE
13 "O"-Ring NBR Viton
14 Antistatic Spring Stainless Steel SS316
15 Ball  ASTM A105+ENP  ASTM A182-F6,F304,F316,F316L,F51
16 Body  ASTM  A105+ENP  A182-F6,F304,F316,F316L,F304L,F51
17 Stud ASTM  A193-B7,B8M,B8,B8M
18 Nut ASTM  A194-2H,2HM,8,8M
