Ball valve manufacturer

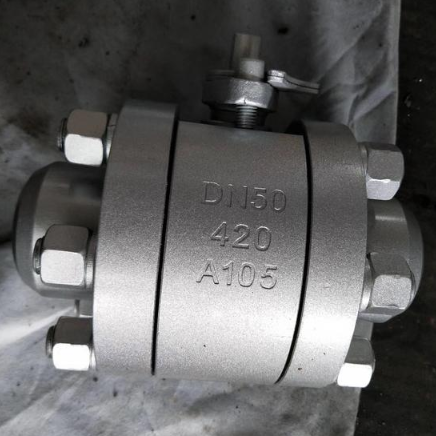

Metal seated high pressure ball valve

  • Port size:1/2"~2" (DN15~DN50)
  • Pressure:CL900-CL2500
  • Structure:3PC,metal seated design
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-40~450℃
  • Body material:A105 LF2 F304 F316 F316L or others
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:Metal seated for high temperature medium
Metal seated high pressure ball valve introduction:
Metal seated high pressure ball valve is used for high temperature medium, the temperature is above 200 ℃, with metal to metal seat design for high temperature and high pressure medium. Metal seated high pressure ball valve is a kind of high pressure service valve for 900LB 1500LB 2500LB pressure class with A105 or other material F304 F316 F304L F316L F53 F55,etc..Metal seated high pressure ball valve in the pipeline is mainly used to cut off, distribution and change the flow direction of the medium, it only needs to use a rotation of 90 degrees of operation and a small torque to close tight.Metal seated high pressure ball valve is most suitable for switch and cut off valve use with manual, pneumatic,electric control.

Metal seated high pressure ball valve main characteristics of compact structure, reliable sealing, simple structure, convenient maintenance, sealing surface and the spherical often in the closed state, not easily be medium erosion, easy operation and maintenance,Metal seated high pressure ball valve is applicable to water, solvent, acid and gas, such as general work medium, Metal seated high pressure ball valve is also suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.

Metal seated high pressure ball valve specification:
1.Full port, 1/4"~2" (DN8~DN50)
2. Nonimal pressure.: 900LB-2500LB
3. Working temperature.:-40~450℃
4. Investment casting
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. Weld end:BW/SW


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
