Ball valve manufacturer

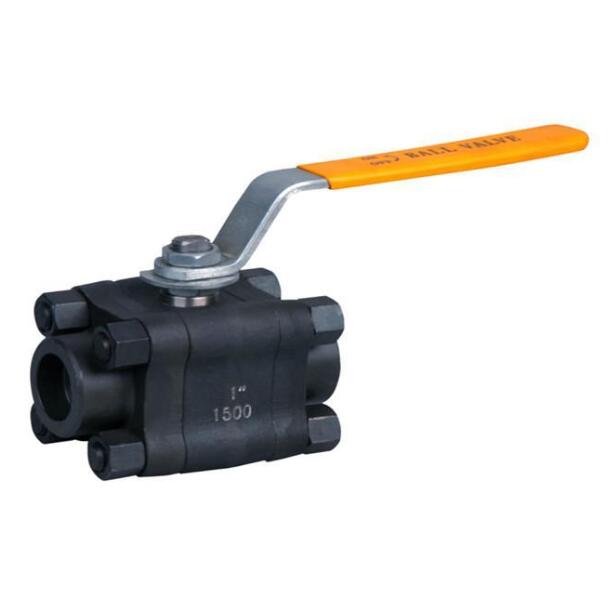

High pressure socket weld ball valve

  • Port size:1/2"~4" (DN15~DN100)
  • Pressure:CL800-CL2500,PN100-PN420
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:A105 LF2 F304 F316 F316L or others
  • Connection:Socket weld
  • Feature:China High pressure ball valve manufacturer
High pressure socket weld ball valve,China high pressure ball valve manufacturer,factory and supplier for High pressure socket weld ball valve,which is 2 PC or 3PC design,full bore or reduced bore,High pressure socket weld ball valve is a kind of high pressure service valve for 800LB to 2500LB,PN100 to PN420 pressure class with A105 F304 F316 or other forged steel material.High pressure socket weld ball valve is most suitable for switch and cut off valve use with manual, pneumatic,electric control.High pressure socket weld ball valve is applicable to water, solvent, acid and gas, such as general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.

High pressure socket weld ball valve specification:
1. Option structure:Full port, 1/2"~4" (DN15~DN100)
2. Nonimal pressure.:800LB to 2500LB,PN100 to PN420
3. Working temperature.:-29~180℃,-40~450℃
4. Forged steel:A105 F304 F316 or others
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. End:Flange, thread,BW,SW

High pressure socket weld ball valve standard:
Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard: ASME B16.34/DIN3230
Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
