Ball valve manufacturer

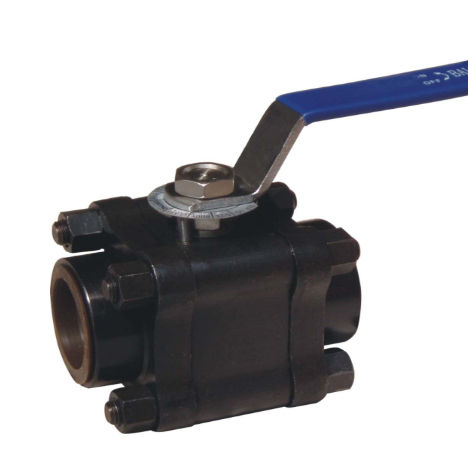

Forged Steel A105 NPT thread ball valve

  • Port size:3/8"~2" (DN10~DN50)
  • Pressure:CL150-CL2500
  • Structure:2PC or 3PC,Full or reduced bore
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:A105 or LF2 F304 F316 F316L etc.
  • Connection:NPT,FNPT or others
  • Feature:Forged steel for good performance

Forged Steel A105 NPT thread ball valve introduction
Forged Steel A105 NPT thread ball valve for high pressure medium with 2PC or 3PC,full bore or reduced bore, floating ball structure,Forged Steel A105 NPT thread ball valve is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems.Forged Steel A105 NPT thread ball valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of Forged Steel A105 NPT thread ball valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is 150lb to 2500lb, the nominal diameter is DN10-50mm, the material can be forged steel, forged stainless steel.

Forged Steel A105 NPT thread ball valve structure feature
Three, Two-Pieces Forged Body
Floating Type, Full & Reduced Bore
Blow-out Proof Stem
Fire Safe Design
Material and Working Temp.:
PTFE&R-PTFE: 0ºC-200ºC(32ºF-392ºF) PEEK: 260ºC(500°F) Maximum


Forged Steel A105 NPT thread ball valve standard
Design: ASME B16.34/BS 5351
Face to Face: Manufacturer Standard
Screwed End: ANSI B1.20.1;JB/T7306
Scoket Welded End: ANSI B16.11;JB/T1751
Butt-welded End:ANSI B16.25;JB/T12224
Flanged End:ANSI B16.5;JB79
Test: API 598;GB/T13927;JB/T9092
Fire Safe Test: API 607/API 6FA


Forged Steel A105 NPT thread ball valve main part material

PARTS NAME                          MATERIALS
CAP ASTM A105/F304/F316/F304L/F316L
GASKET GRAPHITE+304/GRAPHITE+316
BODY ASTM A105/F304/F316/F304L/F316L
SEAT R-PTFE/PEEK
BALL ASTM A105+ENP/F304/F316/F304L/F316L
STEM ASTM A182 F6/F304/F316/F304L/F316L
STEM PACKING PTFE
STOP PLATE CARBON STEEL
HANDLE ANSI 1025
NUT ASTM A194 2H/ A194 B8
OTHER MATERIALS ARE AVAILABLE UPON REQUEST.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
