Ball valve manufacturer

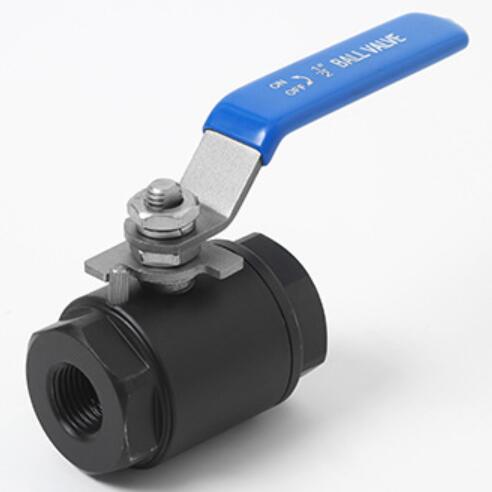

3000 PSI WOG Thread Forged Ball Valve

Port size：1/2"~2" (DN15~DN50)
Pressure：3000 PSI WOG or others
Structure：2PC or 3PC Structure
Medium：Water,steam,oil,gas,etc.
Temperature :-29～180℃
Body material：A105 LF2 F304 F316 F316L or others
Connection：Threaded end or BW is optional
Feature：Different structure is optopnal

Product Description

3000 PSI, 3000 WOG Ball Valve Manufacturer, Factory and Supplier with best price for sale. 3000 PSI WOG Thread Forged Ball Valve can be 2PC or 3 PC, threaded end or socket welded end optional, full bore, floating ball structure, 3000 PSI WOG Thread Forged Ball Valve is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems. 3000 PSI WOG Thread Forged Ball Valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 3000 PSI WOG Thread Forged Ball Valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.

3000 PSI WOG Thread Forged Ball Valve Feature:
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

3000 PSI WOG Thread Forged Ball Valve Specification:

Product Name	3000 PSI WOG Thread Forged Ball Valve
1. Material	A105 or F304,F316 etc.
2. Size	1/4~2 inch ( DN10~DN50)
3. Port	Full Port
4. Working Pressure	3000 PSI or others
5. Connection Ends	Threaded or Socket welded or others
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598
