Ball valve manufacturer

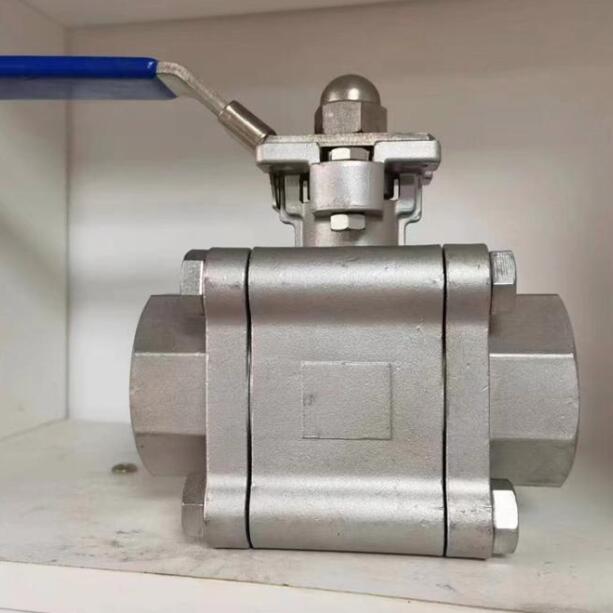

3PC 3000 PSI WOG Ball Valve F304 F316

  • Port size:1/2"~2" (DN15~DN50)
  • Pressure:3000 PSI WOG or others
  • Structure:3PC,Full bore
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~180℃
  • Body material:F304 F316 F316L or others
  • Connection:Thread,SW,BW is optional
  • Feature:Customized order is acceptable
3000 PSI Ball Valve, 3000 WOG Ball Valve Manufacturer, Factory and Supplier with best price for sale. 3PC 3000 PSI WOG Ball Valve F304 F316 is threaded or socket welded end, forged stainless steel F304 F316 material, full bore, floating ball structure, 3PC 3000 PSI WOG Ball Valve F304 F316 is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems. 3PC 3000 PSI WOG Ball Valve F304 F316 has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 3PC 3000 PSI WOG Ball Valve F304 F316 can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.

3PC 3000 PSI WOG Ball Valve F304 F316 Feature:
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.


3PC 3000 PSI WOG Ball Valve F304 F316 Specification:
Product Name 3PC 3000 PSI WOG Ball Valve F304 F316
1. Material F304,F316 etc.
2. Size 1/4~2 inch ( DN10~DN50)
3. Port Full Port
4. Working Pressure  3000 PSI or others
5. Connection Ends Threaded or Socket welded or others
6. Working Temp.  -20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598
