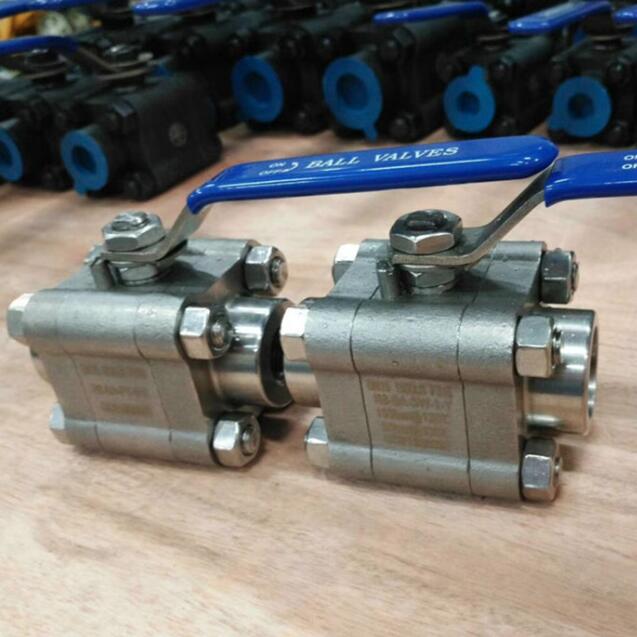

3 Piece 5000 PSI Forged Ball Valve

Port size：1/2"~2" (DN15~DN50)
Pressure：5000 PSI WOG or others
Structure：3PC,Full bore
Medium：Water,steam,oil,gas,etc.
Temperature :-29～180℃
Body material：A105 LF2 F304 F316 F316L or others
Connection：Flange,Thread,SW,BW is optional
Feature：5000 PSI ball valve best price for sale

Product Description

5000 PSI Ball Valve Manufacturer, Factory and Supplier with best price for sale. 3 Piece 5000 PSI Forged Ball Valve is threaded or socket welded end, forged steel A105 F304 F316 or other forged steel material, full bore, floating ball structure, 3 Piece 5000 PSI Forged Ball Valve is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems. 3 Piece 5000 PSI Forged Ball Valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 3 Piece 5000 PSI Forged Ball Valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.

3 Piece 5000 PSI Forged Ball Valve Feature:
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

3 Piece 5000 PSI Forged Ball Valve Specification:

Product Name	3 Piece 5000 PSI Forged Ball Valve
1. Material	A105 F304,F316 etc.
2. Size	1/4~2 inch ( DN10~DN50)
3. Port	Full Port
4. Working Pressure	5000 PSI or others
5. Connection Ends	Threaded or Socket welded or others
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598
