Ball valve manufacturer

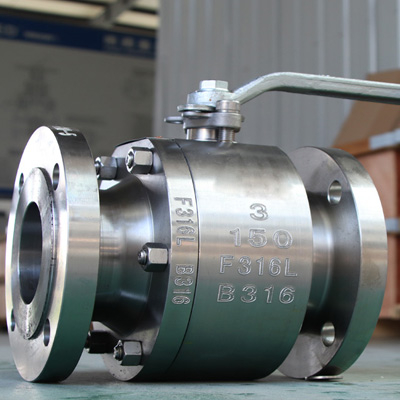

3 inch F316L forged steel ball valve

Port size：3 inch
Pressure：150LB-2500LB
Structure：3PC,Floating ball
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：F316L or other material
Connection：Flanged end or others
Feature：2 PC or 3 PC is optional

Product Description

3 inch F316L forged steel ball valve is 3PC,full bore, floating ball structure with flange, thread, SW,BW end,3 inch F316L forged steel ball valve is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems.3 inch F316L forged steel ball valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.

3 inch F316L forged steel ball valvee can be made into a large diameter, reliable sealing, simple structure, convenient maintenance, sealing surface and spherical surface often in the closed state, not easy to be eroded by the medium.3 inch F316L forged steel ball valve is suitable for chemical industry, petroleum, natural gas, metallurgy and other industries and hydrogen sulfide medium, impurities, corrosion severe long - term natural gas pipeline.

3 INCH F316L Forged stainless steel ball valve Specification:

Product Name	F316L Forged stainless steel ball valve
1. Material	F316L,etc.
2. Size	3 inch or 1/4~2 inch ( DN10~DN50)
3. Port	Full Port
4. Working Pressure	150LB,300LB,600LB, 900LB,1500LB,2500LB
5. Connection Ends	Flanged
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

3 INCH F316L Forged stainless steel ball valve features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
