Ball valve manufacturer

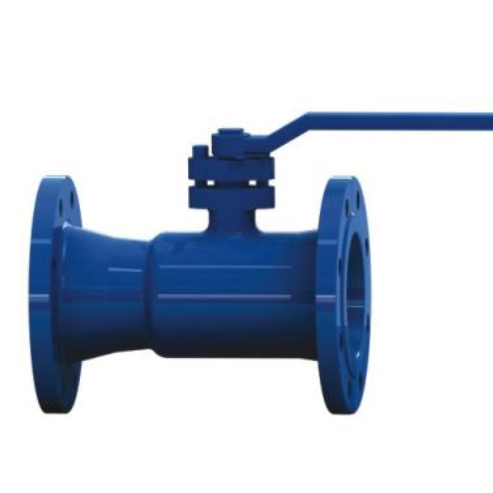

one piece floating ball valve factory manufacturer

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:one piece,reduced bore
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-40~350℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange
  • Feature:For high pressure medium
Shanghai Huixuan valve is one piece floating ball valve factory and manufacturer which produce pneumatic one piece floating ball valve,electric one piece floating ball valve and manual one piece floating ball valve with different material and pressure class.

One piece floating ball valve introduction
one piece floating ball valve adopts a new sealing material graphite as the seat, and the service life of the ball valve is increased by 3-5 times. One piece floating ball valve has stable performance, reliable sealing, friction small, light switch, high temperature resistant, wear resistant, oil resistant and corrosion resistant, long service life,One piece floating ball valve have the same face to face length with globe valve, plunger valve.One piece floating ball valve is widely used in petroleum, chemical, rubber, paper, pharmaceutical and other industries, alternative cut-off valve, plunger valve, quick discharge valve.One piece floating ball valve applicable medium: water, steam, heat conduction oil and other acids, service temperature: ≤350℃

One piece floating ball valve specification
Nominal diameter:1/2"~12" (DN15~DN300)
Nominal pressure:PN10-PN64 CL150-CL600
Body material carbon steel, 304/316/316L stainless steel
The material of the ball is stainless steel 304/316/316L
Seat seal:Graphite
Temperature:≤350℃,
Suitable for medium water, oil, heat conduction oil, steam, high temperature gas, etc
Features high temperature resistance, integrated structure, low resistance, a variety of length.

One piece floating ball valve performance
1. Floating ball, reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. Graphite seat seal.
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
