Ball valve manufacturer

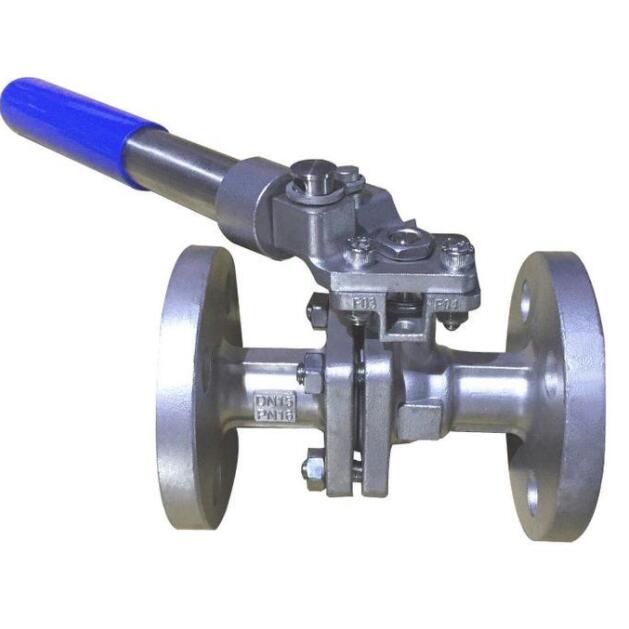

Auto reset ball valve with spring return lever

Port size：DN15-DN300;1/2''-24''
Pressure：PN16 ~ 100,150LB ~ 600LB
Structure：Spring return handle for self closing
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Carbon Steel, Stainless Steel
Connection：Flanged end or others
Feature：Spring return handle for auto reset

Product Description

Auto reset ball valve with spring return lever introduction
Auto reset ball valve with spring return lever is automatic reset, automatic return, two-piece structure.Auto reset ball valve with spring return lever spring automatically returns to open and close only needs to rotate 90 degrees operation and the small rotation moment can connect the medium circulation.The characteristics of the Auto reset ball valve with spring return lever is in the spring on the handle, in the spring of the handle into consideration to the long-term use can lead to the present situation of the spring is stretched or pull dead, in the interior design for spring adjustable tension and firmness, and the use after a period of time, which can spin down the lever, the internal nut tighten, (such as the need to slowly close to loosen the nut, let a lighter spring, to the effect of slow closing) the design of Spring return self closing ball valve is the traditional insurmountable.Auto reset ball valve with spring return lever in access, tank bottom, the use of mechanical equipment is very wide, compared with the traditional two-piece ball valve, not only can save trouble and effort, in some equipment can also prevent the loss of fluid caused by forgetting to close the valve.
Auto reset ball valve with spring return lever is suitable for chemical industry, petroleum, electric power, pharmacy, beer, food, dairy beverage, cosmetics and engineering pipeline and other fields.

Auto reset ball valve with spring return lever specification:

Product Name	Auto reset ball valve with spring return lever
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/2~4 inch ( DN15~DN100)
3. Port	Full Port
4. Working Pressure	PN10-PN100 CL150-CL600
5. Connection Ends	Flange,SW,thread,clamp
6. Working Temp.	-20~150ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598
