Ball valve manufacturer

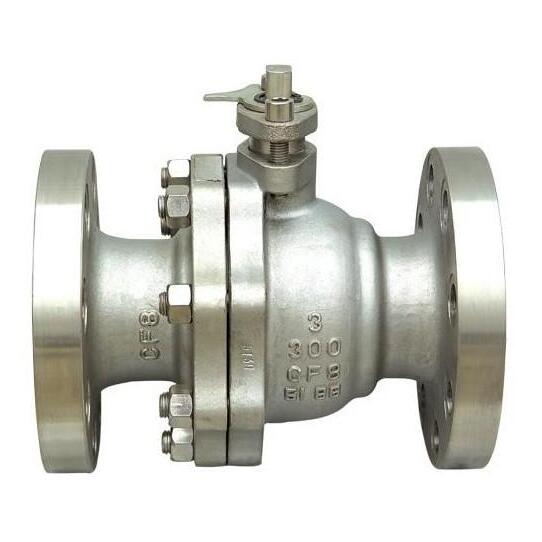

China floating ball valve factory and supplier

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:China floating ball valve factory
China floating ball valve factory and supplier,floating ball valve manufacturer,floating ball valve is widely used in petroleum, chemical, rubber, paper, pharmaceutical and other industries, alternative cut-off valve, plunger valve, quick discharge valve.Floating ball valve applicable medium: water, steam, heat conduction oil and other acids.

Floating ball valve specification
Nominal diameter:1/2"~12" (DN15~DN300)
Nominal pressure:PN10-PN64 CL150-CL600
Body material carbon steel, 304/316/316L stainless steel
The material of the ball is stainless steel 304/316/316L
Seat seal:PTFE,Graphite,metal seated.
Temperature:-29~150℃,-40~450℃
Suitable for medium water, oil, heat conduction oil, steam, high temperature gas, etc
Features high temperature resistance, integrated structure, low resistance, a variety of length.

Floating ball valve performance
1. Floating ball, reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. Graphite seat seal.
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
