Ball valve manufacturer

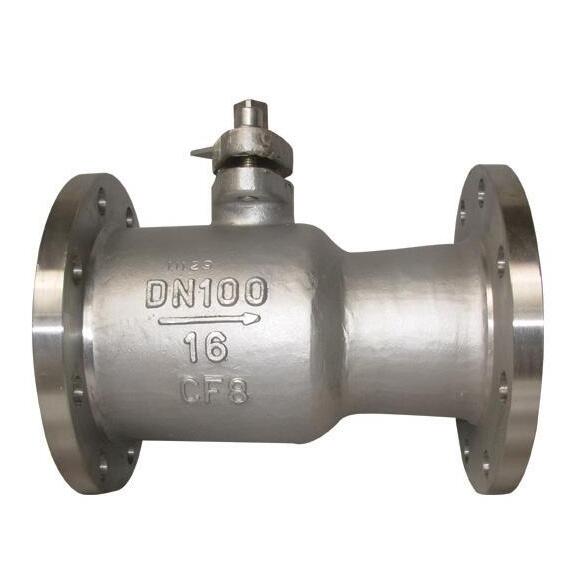

Manual one piece unibody ball valve

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:One piece,floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:One piece structure, good seal performance
Manual one piece unibody ball valve introduction
Manual one piece unibody ball valve adopts a new sealing material graphite as the seat, and the service life of the ball valve is increased by 3-5 times. Manual one piece unibody ball valve has stable performance, reliable sealing, friction small, light switch, high temperature resistant, wear resistant, oil resistant and corrosion resistant, long service life,Manual one piece unibody ball valve has the same face to face length with globe valve, plunger valve.Manual one piece unibody ball valve is widely used in petroleum, chemical, rubber, paper, pharmaceutical and other industries, alternative cut-off valve, plunger valve, quick discharge valve.One piece floating ball valve applicable medium: water, steam, heat conduction oil and other acids, service temperature: ≤350℃

Manual one piece unibody ball valve specification
Nominal diameter:1/2"~12" (DN15~DN300)
Nominal pressure:PN10-PN64 CL150-CL600
Body material carbon steel, 304/316/316L stainless steel
The material of the ball is stainless steel 304/316/316L
Seat seal:Graphite
Temperature:≤350℃,
Suitable for medium water, oil, heat conduction oil, steam, high temperature gas, etc
Features high temperature resistance, integrated structure, low resistance, a variety of length.

Manual one piece unibody ball valve performance
1. Floating ball, reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. Graphite seat seal.
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
