Ball valve manufacturer

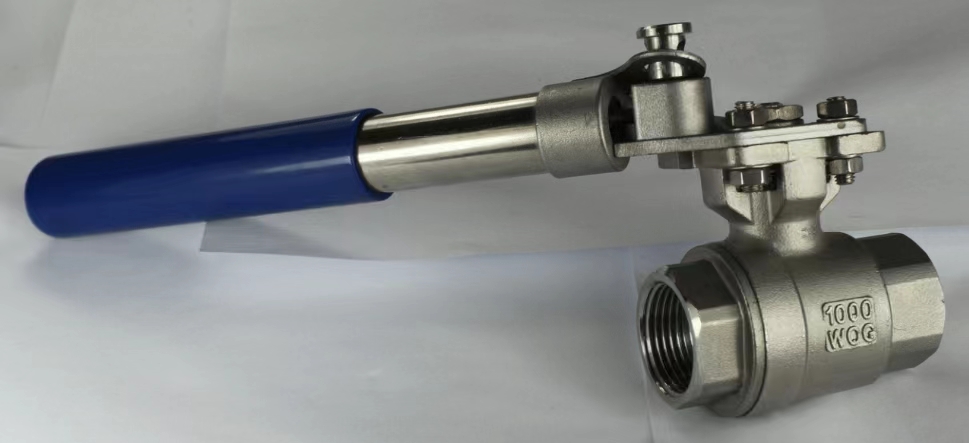

2PC NPT Threaded Spring Return Ball Valve

Port size：DN15-DN50
Pressure：1000 WOG or others
Structure：Full Bore
Medium：W.O.G.
Temperature :-29～180℃ or higher
Body material：CF8,CF8M,etc.
Connection：Threaded End or others
Feature：Spring return, self closing

Product Description

2PC NPT threaded spring return ball valve manufacturer, factory and supplier. 2PC NPT threaded spring return ball valve is 2 pieces full bore, floating ball design with spring return handle for safe close, CF8 CF8M CF3 CF3M or other material is optional, 2PC NPT threaded spring return ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of 2PC NPT threaded spring return ball valve is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

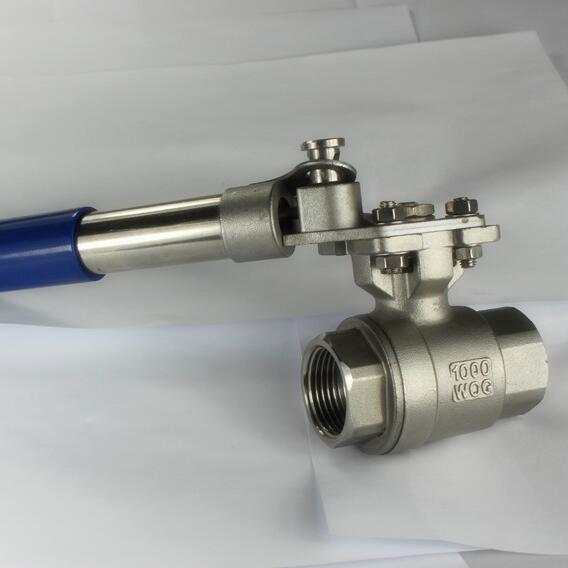

2PC NPT threaded spring return ball valve

2PC NPT threaded spring return ball valve Specification:

Product Name	2PC NPT threaded spring return ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/2~8 inch ( DN15~DN200)
3. Port	Full Port
4. Working Pressure	150LB~1500LB
5. Connection Ends	Flange
6. Working Temp.	-20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

2PC NPT threaded spring return ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

2PC NPT threaded spring return ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
