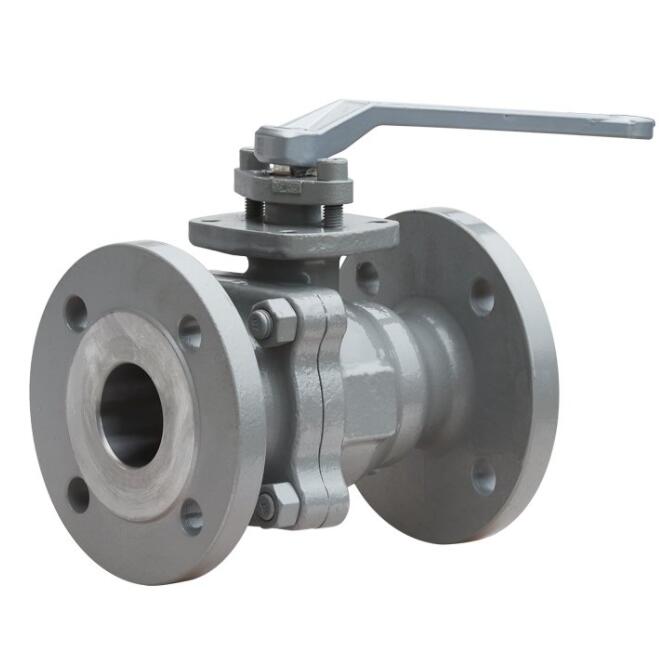

2 1/2 inch DN65 65mm floating ball valve

Port size：2 1/2 inch DN65 65mm
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Carbon Steel, Stainless Steel,forged steel
Connection：Flanged,welded,threaded.
Feature：Different operation is for option.

Product Description

China floating ball valve manufacturer,factory,company and supplier,2 1/2 inch DN65 65mm floating ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries.

2 1/2 inch DN65 65mm floating ball valve Specification:

Product Name	2 1/2 inch DN65 65mm floating ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	2 1/2 inch DN65 65mm
3. Port	Full Port
4. Working Pressure	150LB~2500LB
5. Connection Ends	Flange
6. Working Temp.	-20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

2 1/2 inch DN65 65mm floating ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

2 1/2 inch DN65 65mm floating ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
