Ball valve manufacturer

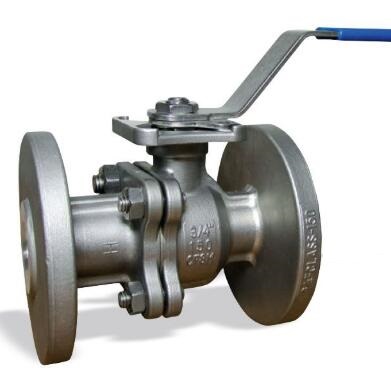

ISO 5211 mounting pad floating ball valve

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:ISO 5211 mounting pad
ISO 5211 mounting pad floating ball valve is composed of flange/thread/weld high platform direct mount ball valve and ISO 5211 mounting pad for manual,electric or pneumatic actuator.ISO 5211 mounting pad floating ball valve is available in high quality 304 316 304L 316L and other stainless steel in either RF,NPT, SW, BW connection ends with ANSI 150LB 300LB,600LB,1000 WOG,2000 WOG,PN16 PN25 PN40 PN64 Pressure class.ISO 5211 mounting pad floating ball valve is ideal for any water type of environment,such as waste water, industrial or commercial use, chemical, petro and oil industries and services.

ISO 5211 mounting pad floating ball valve design parameter:
ISO 5211 mounting pad floating ball valve size:1/2" - 12" (inches)
Working Pressure : PN10-PN64 CL150-CL600
Temperature Rating : -29~150℃ (soft seat);-40~450℃ (metal seat)
direct ball valve is long cycle life
Blow-out proof steam
Anti-static device
Adjustable stem packing, handle with lock device
ISO-5211 Pad for direct mount automation
direct mount ball valveTest Standard: API 598
Vacuum Service to 29" Hg
End Connections: Flange End, Threaded End, Socket Weld, Butt Weld
