Ball valve manufacturer

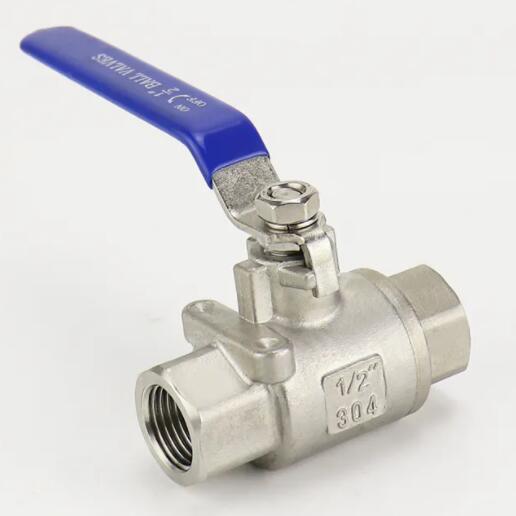

1000 PSI WOG threaded ball valve

  • Port size:1/2″ to 4″,DN15-DN100
  • Pressure:1000 PSI, 1000 WOG
  • Structure:2 Piece or 3 piece
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃
  • Body material:Carbon steel,stainless steel,etc.
  • Connection:Threaded end or others
  • Feature:ISO 5211 mounting pad is optional
1000 PSI WOG threaded ball valve manufacturer, factory and supplier.1000 PSI WOG threaded ball valve can be 2 piece or 3 piece body design according to client's need.1000 PSI WOG threaded ball valve has blow-out proof stems with a WCB 304 SS 316SS body and ball and a 304SS pad-lockable handle, ISO 5211 mounting pad or lever, electric or pneumatic actuator.1000 PSI WOG threaded ball valve is suitable for 1000 psi (at ambient temperature) water, oil, or gas and steam.

1000 PSI WOG threaded ball valve specification
Type: Ball Valve, 2-Piece, Full Port
Size: 3/8"-4''
Rating: 1000 WOG (Other pressure class is optional)
Connection: Threaded (NPT,BSP,RC)
Body Material: WCB, 304SS 316SS or other material
Ball: WCB, 304SS 316SS or other material
Stem: 304SS 316SS or other material
Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles

ISO 5211 mounting pad or lever, electric or pneumatic actuator.
