Ball valve manufacturer

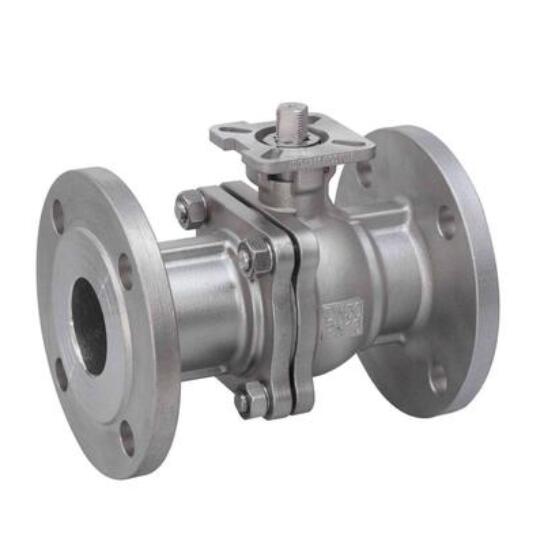

China JIS ball valve manufacturer

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:JIS 10K 16K 20K 30K
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:China JIS ball valve manufacturer
China JIS ball valve manufacturer,factory and supplier,JIS standard ball valve is 2pc full bore or reduced bore,floating structure,JIS ball valve is suitable for JIS 10K,JIS 16K,JIS 20K,JIS 30K pipeline, which is used to cut off or connect the medium in the pipeline, choose different materials,JIS standard ball valve can be used respectively for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.JIS standard ball valve can be widely used in papermaking, petrochemical, chemical industry, metallurgy, electric power, environmental protection, petroleum, light industry and other industrial departments of automatic control system.

JIS standard ball valve Specification:
Product Name JIS standard ball valve
1. Material WCB,CF8,CF8M,CF3,CF3M or other material
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port or reduced port
4. Working Pressure 10K 20K 30K
5. Connection Ends Flange
6. Working Temp.  -29~150℃,-40~450℃, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

JIS standard ball valve performance
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
