Ball valve manufacturer

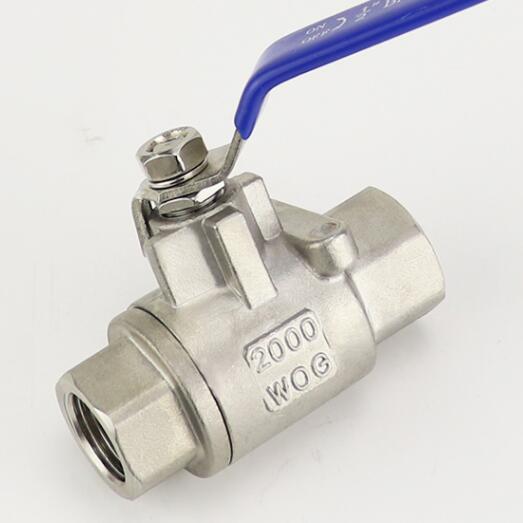

Threaded 2000 PSI WOG ball valve

Port size：1/2″ to 4″,DN15-DN100
Pressure：2000 PSI, 2000 WOG
Structure：2 Piece or 3 piece
Medium：Water,seawater, air,etc.
Temperature :-29～150℃
Body material：WCB, 304SS, 316SS or others
Connection：Threaded end or others
Feature：Different material is optional

Product Description

Threaded 2000 PSI WOG ball valve manufacturer, factory and supplier. Threaded 2000 PSI WOG ball valve can be 2 piece or 3 piece body design according to client's need. Threaded 2000 PSI WOG ball valve has blow-out proof stems with a WCB 304 SS 316SS body and ball and a 304SS pad-lockable handle, ISO 5211 mounting pad or lever, electric or pneumatic actuator.Threaded 2000 PSI WOG ball valve is suitable for 2000 psi (at ambient temperature) water, oil, or gas and steam.

Threaded 2000 PSI WOG ball valve specification

Type: Ball Valve, 2-Piece or 3-Piece, Full Port

Size: 3/8"-4''

Rating: 2000 WOG (Other pressure class is optional)

Connection: Threaded (NPT,BSP,RC)

Body Material: WCB, 304SS 316SS or other material

Ball: WCB, 304SS 316SS or other material

Stem: 304SS 316SS or other material

Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles
ISO 5211 mounting pad or lever, electric or pneumatic actuator.
