Ball valve manufacturer

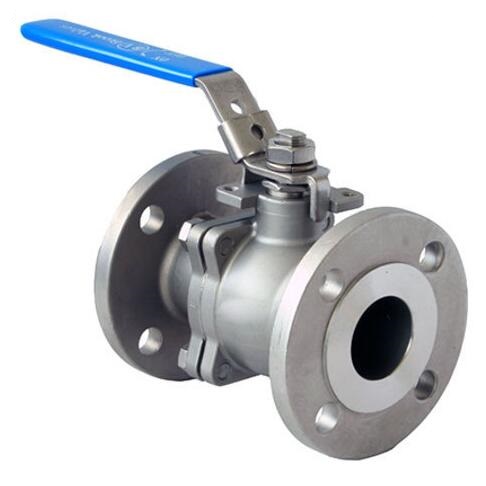

2PC Lever ball valve with locking handle

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:Lockable ball valve with locking handle
China locking ball valve manufacturer,factory,factory and supplier, 2PC Lever ball valve with locking handle features a lead-free lockable handle. The locking handle allows the ball valve to be locked into an open or closed position, so that the operator has even greater control over its use.

2PC Lever ball valve with locking handle Specification:
Product Name 2PC Lever ball valve with locking handle
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -20~180ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

2PC Lever ball valve with locking handle Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

2PC Lever ball valve with locking handle Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE/Delvon/PEEK seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
