Ball valve manufacturer

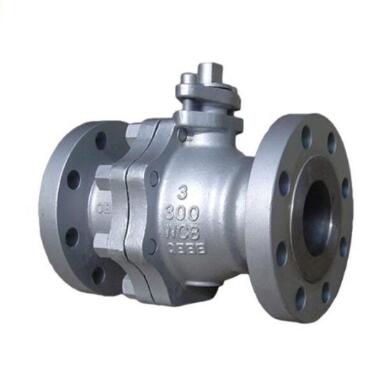

3 inch floating ball valve Full port Class 300

  • Port size:3 inch
  • Pressure:300LB
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:China floating ball valve manufacturer
3 inch floating ball valve Full port Class 300,DN80 ball valve,80mm ball valve,China 3 inch ball valve manufacturer,factory,company and supplier,3 inch floating ball valve Full port Class 300 is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries.

3 inch floating ball valve Full port Class 300 Specification:
Product Name 3 inch floating ball valve Full port Class 300
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size 1/2~8 inch ( DN15~DN200)
3. Port Full Port
4. Working Pressure 150LB~1500LB
5. Connection Ends Flange
6. Working Temp.  -20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

3 inch floating ball valve Full port Class 300 Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

3 inch floating ball valve Full port Class 300 Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
