Ball valve manufacturer

1 1.5 2 3 4 5 6 8 inch ball valve

  • Port size:1 1.5 2 3 4 5 6 8 inch
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:Floating,full bore
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:1 1.5 2 3 4 5 6 8 inch ball valve for sale

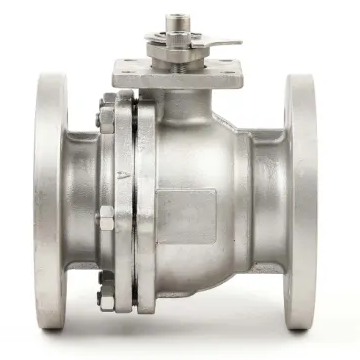

1 1.5 2 3 4 5 6 8 inch ball valve introduction:
1 1.5 2 3 4 5 6 8 inch ball valve is 2pc or 3 pc full bore or reduced bore,floating structure with flange ,welded or threaded end.1 1.5 2 3 4 5 6 8 inch ball valve is suitable for Class150~Class1500, PN16~PN100, JIS 10K~JIS 20K pipeline,1 1.5 2 3 4 5 6 8 inch ball valve used to cut off or connect the medium in the pipeline, choose different materials,1 1.5 2 3 4 5 6 8 inch ball valve can be used respectively for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.1 1.5 2 3 4 5 6 8 inch ball valve can be widely used in papermaking, petrochemical, chemical industry, metallurgy, electric power, environmental protection, petroleum, light industry and other industrial departments of automatic control system.

1 1.5 2 3 4 5 6 8 inch ball valve Specification:
Product Name 1 1.5 2 3 4 5 6 8 inch ball valve
1. Material WCB 304 316 CF8 CF8M or others
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port or reduced port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange or others
6. Working Temp.  -29~150℃,-40~450℃, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

1 1.5 2 3 4 5 6 8 inch ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

1 1.5 2 3 4 5 6 8 inch ball valve performance
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
