Ball valve manufacturer

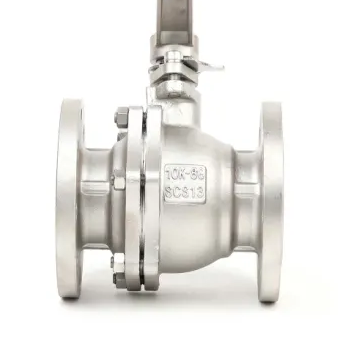

JIS 10K 20K 30K floating ball valve

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:JIS 10K 20K 30K
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange
  • Feature:JIS Standard
JIS 10K 20K 30K floating ball valve introduction:
JIS 10K 20K 30K floating ball valve is 2pc full bore or reduced bore,floating structure,JIS 10K 20K 30K floating ball valve is suitable for JIS 10K,JIS 20K,JIS 30K pipeline, JIS 10K 20K 30K floating ball valve used to cut off or connect the medium in the pipeline, choose different materials,JIS 10K 20K 30K floating ball valve can be used respectively for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.JIS 10K 20K 30K floating ball valve can be widely used in papermaking, petrochemical, chemical industry, metallurgy, electric power, environmental protection, petroleum, light industry and other industrial departments of automatic control system.

JIS 10K 20K 30K floating ball valve feature:
1. O type floating ball valve with full size or reduced diameter design, small flow resistance.
2. JIS 10K 20K 30K floating ball valve can adopt a high platform structure, can make the installation of electric/pneumatic actuator more professional.
3. JIS 10K 20K 30K floating ball valve stem adopts the built-in type, shaft shoulder and PTFE (or reinforced graphite) thrust pad structure to prevent the valve stem from blowing out due to the pressure in the pipeline, while PTFE (or reinforced graphite) material reduces the opening and closing torque of the valve, so that the operation is more labor-saving.
4. With fire and anti-static structure, in the JIS 10K 20K 30K floating ball valve stem and valve body and valve stem and ball between the conductive spring, to avoid electrostatic lighting ignited flammable medium.Ensure system security.
5. Fire resistant structure double protection, in case of fire and make the seal ring burn, the ball valve each sealing part can form a metal to metal hard seal structure.

JIS 10K 20K 30K floating ball valve Specification:
Product Name JIS 10K 20K 30K floating ball valve
1. Material WCB,CF8,CF8M,CF3,CF3M or other material
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port or reduced port
4. Working Pressure 10K 20K 30K
5. Connection Ends Flange
6. Working Temp.  -29~150℃,-40~450℃, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598


JIS 10K 20K 30K floating ball valve performance
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
