Ball valve manufacturer

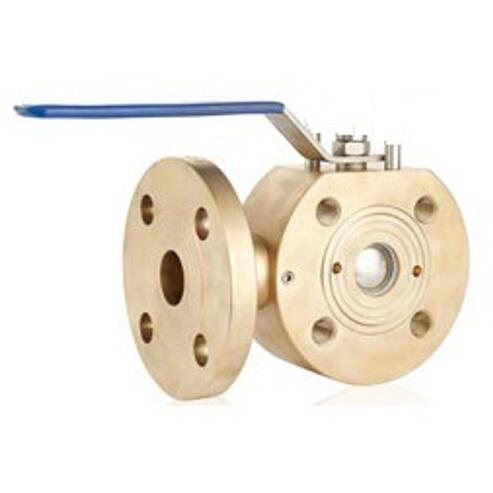

Three way bronze wafer type ball valve

Port size：DN50-DN300;2''-12''
Pressure：PN16 ~ 40,150LB ~ 300LB
Structure：3 way,wafer type
Medium：seawater or others
Temperature :-40~180ºC
Body material：Bronze or others
Connection：Wafer type
Feature：T port or L port is optional.

Product Description

Three way bronze wafer type ball valve is compact structure with T port or L port design to solve space limit problem,,Three way bronze wafer type ball valve is mainly used to overcome the harsh working conditions of strong corrosive environment,such as sea water desalination platforms, various types of sea vessels, warships, submarines, offshore drilling platforms and other Marine equipment;Three way bronze wafer type ball valve is also used in polycarbonate, polyethylene, low density polyethylene, aromatic, liquefied natural gas (LNG) refinery facilities.Three way bronze wafer type ball valve has been widely used in fire fighting systems, ballast control systems, cooling systems, seawater injection systems and many other critical systems.

Three way bronze wafer type ball valve specification:

Product Name	Three way bronze wafer type ball valve
1. Material	Aluminum bronze:C95800 C95500 C95400
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	150LB~1500LB
5. Connection Ends	Wafer type Flanged end
6. Working Temp.	-29~180ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Three way bronze wafer type ball valve design feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Three way bronze wafer type ball valve application:
Marine piping system: fuel oil, water supply, steam, cooling, engine, etc.
Chemical pipeline system: such as container, heat exchanger, mixer, gas liquid, drying, reaction, etc.
Petrochemical pipeline system: such as petroleum steam mining, crude oil mining, petroleum refining, transportation, separation, etc.
Refining piping system: antibiotic fermentation, concentration, vegetable oil, bitumen, raw energy, etc.
