Ball valve manufacturer

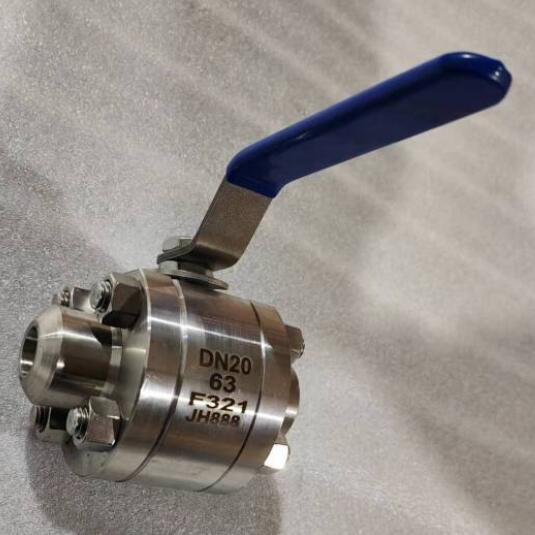

F321 Forged stainless steel ball valve

Port size：1/2″ to 24″,DN15-DN600
Pressure：150LB-2500LB
Structure：3 PCS, Full bore
Medium：Water,steam,oil,gas,etc.
Temperature :-20 to 180 ℃ for soft seat, -40 to 450℃ for metal seat.
Body material：F321 or others
Connection：SW, BW, NPT, Flanged or others
Feature：Customized material is acceptable.

Product Description

F321 Forged stainless steel ball valve manufacturer,factory and supplier for F321 ball valve with 2PCS or 3PCS Structure, full bore with threaded end, socket welded or butt welded end, flanged end according to client's requirement. Pressure class from 150LB to 2500LB is acceptable, we also can accept customized order for different special material.

F321 Forged stainless steel ball valve specification:

Product Name	F321 Forged stainless steel ball valve
1. Material	F321 Forged stainless steel ball valve
2. Size	1/2~24 inch ( DN15~DN600)
3. Port	Full Port,reduced port
4. Working Pressure	150LB~2500LB
5. Connection Ends	SW, BW, NPT, Flanged or others
6. Working Temp.	-10~425℃, or according to customer requirements for different industry.
7. Suitable Medium	Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

F321 Forged stainless steel ball valve standard:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.
