Ball valve manufacturer

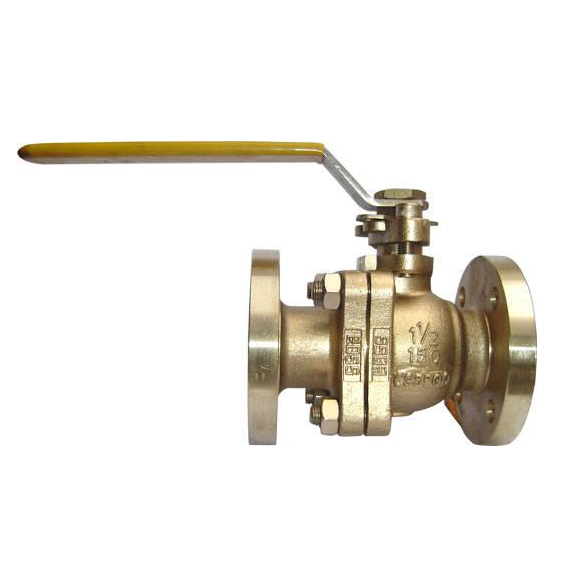

Aluminium Bronze Ball Valve B148 C95800

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating ball
  • Medium:sea water or other medium
  • Temperature :-29~150℃,-40~450℃
  • Body material:B148 C95800
  • Connection:Flange or others
  • Feature:C95800 C95500 C95400 is optional
Aluminium Bronze Ball Valve B148 C95800 introduction:
Aluminium Bronze Ball Valve B148 C95800 is mainly used to overcome the harsh working conditions of strong corrosive environment,such as sea water desalination platforms, various types of sea vessels, warships, submarines, offshore drilling platforms and other Marine equipment;Aluminium Bronze Ball Valve B148 C95800 is also used in polycarbonate, polyethylene, low density polyethylene, aromatic, liquefied natural gas (LNG) refinery facilities.Aluminium Bronze Ball Valve B148 C95800 has been widely used in fire fighting systems, ballast control systems, cooling systems, seawater injection systems and many other critical systems.

Aluminium Bronze Ball Valve B148 C95800 specification:
Product Name Aluminium Bronze Ball Valve B148 C95800
1. Material Aluminum bronze:C95800 C95500 C95400
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port
4. Working Pressure 150LB~1500LB
5. Connection Ends Flange
6. Working Temp.  -29~180ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

Aluminium Bronze Ball Valve B148 C95800 standard
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

Aluminium Bronze Ball Valve B148 C95800 design feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Aluminium Bronze Ball Valve B148 C95800 application:
Marine piping system: fuel oil, water supply, steam, cooling, engine, etc.
Chemical pipeline system: such as container, heat exchanger, mixer, gas liquid, drying, reaction, etc.
Petrochemical pipeline system: such as petroleum steam mining, crude oil mining, petroleum refining, transportation, separation, etc.
Refining piping system: antibiotic fermentation, concentration, vegetable oil, bitumen, raw energy, etc.
