Ball valve manufacturer

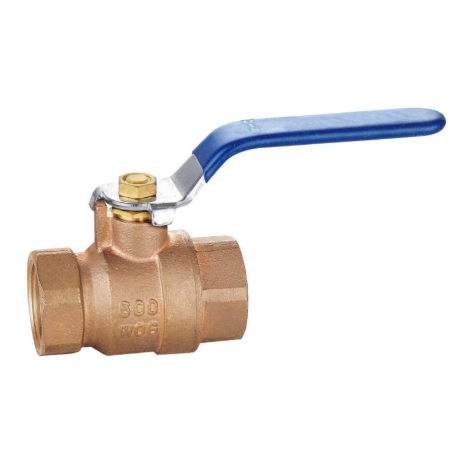

2PC Threaded NPT bronze ball valve

  • Port size:1/2"~2" (DN15~DN50)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating,full bore
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~180℃
  • Body material:Bronze or others
  • Connection:Thread:BSP,BSPT,NPT,G,RC
  • Feature:Marine seawater service
2PC Threaded NPT bronze ball valve introduction:
2PC Threaded NPT bronze ball valve is for seawater service,which is mainly used to overcome the harsh working conditions of strong corrosive environment,such as sea water desalination platforms, various types of sea vessels, warships, submarines, offshore drilling platforms and other Marine equipment; 2PC Threaded NPT bronze ball valve is also used in polycarbonate, polyethylene, low density polyethylene, aromatic, liquefied natural gas (LNG) refinery facilities.2PC Threaded NPT bronze ball valve has been widely used in fire fighting systems, ballast control systems, cooling systems, seawater injection systems and many other critical systems.

2PC Threaded NPT bronze ball valve specification:
Product Name 2PC Threaded NPT bronze ball valve
1. Material Bronze
2. Size 1/2~2inch ( DN15~DN50)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Threaded
6. Working Temp.  -29~180ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

2PC Threaded NPT bronze ball valve standard
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

2PC Threaded NPT bronze ball valve design feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

2PC Threaded NPT bronze ball valve application:
Marine piping system: fuel oil, water supply, steam, cooling, engine, etc.
Chemical pipeline system: such as container, heat exchanger, mixer, gas liquid, drying, reaction, etc.
Petrochemical pipeline system: such as petroleum steam mining, crude oil mining, petroleum refining, transportation, separation, etc.
Refining piping system: antibiotic fermentation, concentration, vegetable oil, bitumen, raw energy, etc.
