Ball valve manufacturer

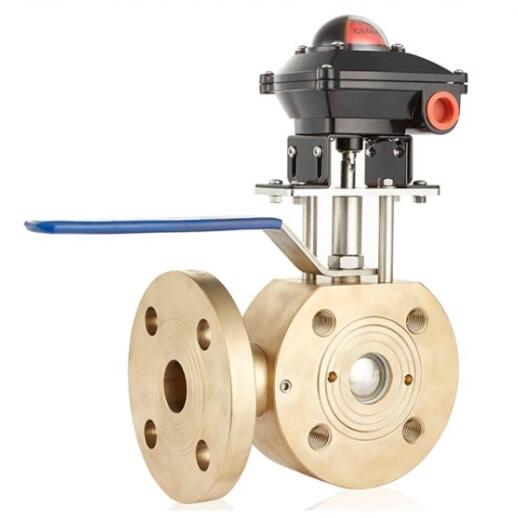

3 way wafer bronze ball valve

  • Port size:DN50-DN300;2''-12''
  • Pressure:PN16 ~ 40,150LB ~ 300LB
  • Structure:3 way,wafer type
  • Medium:seawater or others
  • Temperature :-40~180ºC
  • Body material:Bronze or others
  • Connection:Wafer type
  • Feature:Compact structure,save space
3 way wafer bronze ball valve is compact structure to solve space limit problem,,3 way wafer bronze ball valve is mainly used to overcome the harsh working conditions of strong corrosive environment,such as sea water desalination platforms, various types of sea vessels, warships, submarines, offshore drilling platforms and other Marine equipment; 3 way wafer bronze ball valve is also used in polycarbonate, polyethylene, low density polyethylene, aromatic, liquefied natural gas (LNG) refinery facilities.3 way wafer bronze ball valve has been widely used in fire fighting systems, ballast control systems, cooling systems, seawater injection systems and many other critical systems.

3 way wafer bronze ball valve specification:
Product Name 3 way wafer bronze ball valve
1. Material Aluminum bronze:C95800 C95500 C95400
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port
4. Working Pressure 150LB~300LB
5. Connection Ends wafer type flanged end
6. Working Temp.  -29~180ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

3 way wafer bronze ball valve design feature:

1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

3 way wafer bronze ball valve application:
Marine piping system: fuel oil, water supply, steam, cooling, engine, etc.
Chemical pipeline system: such as container, heat exchanger, mixer, gas liquid, drying, reaction, etc.
Petrochemical pipeline system: such as petroleum steam mining, crude oil mining, petroleum refining, transportation, separation, etc.
Refining piping system: antibiotic fermentation, concentration, vegetable oil, bitumen, raw energy, etc.
