Ball valve manufacturer

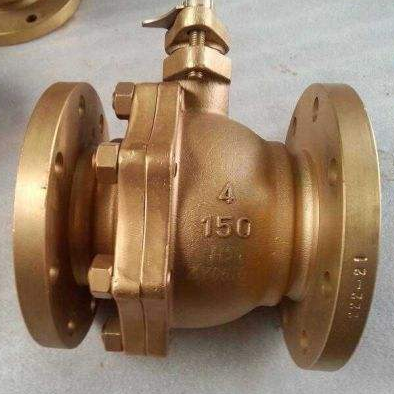

Bronze sea water ball valve

  • Port size:1/2'' ~ 12''( 15mm ~ 300mm)
  • Pressure:Class 150 ~ Class 1500
  • Structure:Full bore, floating,2PC
  • Medium:Sea Water or others
  • Temperature :-29~180℃
  • Body material:C95800 C95500 C95400 or other bronze material
  • Connection:Flange or others
  • Feature:For sea water or severe condition
Bronze sea water ball valve introduction:
Bronze sea water ball valve made by Aluminum bronze:C95800 C95500 C95400 or other bronze material for sea water medium, Bronze sea water ball valve is mainly used to overcome the harsh working conditions of strong corrosive environment,such as sea water desalination platforms, various types of sea vessels, warships, submarines, offshore drilling platforms and other Marine equipment; Bronze sea water ball valve is also used in polycarbonate, polyethylene, low density polyethylene, aromatic, liquefied natural gas (LNG) refinery facilities.Bronze sea water ball valve has been widely used in fire fighting systems, ballast control systems, cooling systems, seawater injection systems and many other critical systems.

Bronze sea water ball valve specification:
Product Name Bronze sea water ball valve
1. Material C95800 C95500 C95400 or other bronze material
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port
4. Working Pressure 150LB~1500LB
5. Connection Ends Flange
6. Working Temp.  -29~180ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

Bronze sea water ball valve standard
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

Bronze sea water ball valve design feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Bronze sea water ball valve application:
Marine piping system: fuel oil, water supply, steam, cooling, engine, etc.
Chemical pipeline system: such as container, heat exchanger, mixer, gas liquid, drying, reaction, etc.
Petrochemical pipeline system: such as petroleum steam mining, crude oil mining, petroleum refining, transportation, separation, etc.
Refining piping system: antibiotic fermentation, concentration, vegetable oil, bitumen, raw energy, etc.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
