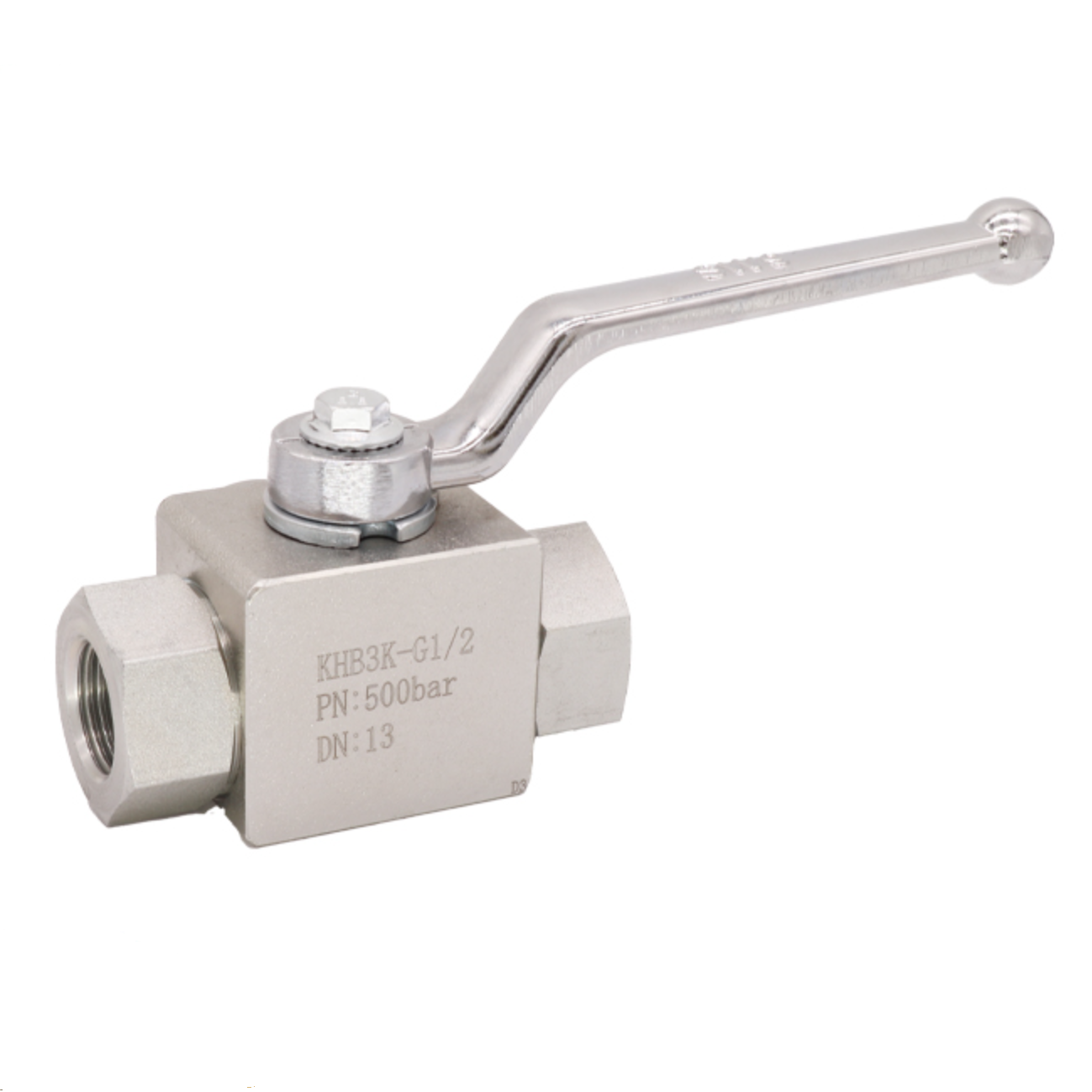

Ultra High Pressure Hydraulic Ball valve

Port size：DN4-DN50
Pressure：210 bar, 315bar, 420bar or higher
Structure：2 way
Medium：hydraulic oil,etc.
Temperature :-25～100℃
Body material：A105, F304, F316,etc.
Connection：Threaded End or others
Feature：Ultra High pressure ball valve

Product Description

Ultra high pressure hydraulic ball valve manufacturer, factory and supplier in China. Ultra high pressure hydraulic ball valve can be female and male threaded end for 315 bar, 400 bar, 500 bar high pressure service, Ultra high pressure hydraulic ball valve is suitable for opening and closing of various pipelines in hydraulic system and chemical system.Switch fast, convenient, small fluid resistance, as long as the stem rotation 90°, Ultra high pressure hydraulic ball valve can complete the full open or full close action, Ultra high pressure hydraulic ball valve is easy to achieve fast opening and closing.Stem seal is reliable.The stem only rotates when the ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure. Ultra high pressure hydraulic ball valve is applicable medium: hydraulic oil, water - glycol, other mixed liquids.

Ultra high pressure hydraulic ball valve code information
(1) Series code: BKH/KHB series,
(2 )Connection code: M**, G**, **LR, **SR, PT**, NPT**
(3) Body material: 1- steel, 2- stainless steel
(4) Ball material: 1- steel, 2- brass, 3- stainless steel
(5) Working temperature: 1, -25 ~ +100℃ 2, -30 ~ +170℃
(6) Other seals: 2-NBR, 4-Vition
(7)Type of handle: 01- aluminum straight handle 02- aluminum crank 03- zinc cast straight handle 04- zinc cast crank 05- steel straight handle 06- steel crank 09- without handle
(8) Design serial number: agreed by the production
(9) Surface treatment: blank - phosphating, G-plating yellow zinc

BKH Carbon steel hydraulic ball valve
